- RX670
Multi-Modality Monitor with USB Type-C Docking and Comfort Light
for Medical Image Reading
- Features
- Specifications
- Documents Compatibility
- Graphics Boards
- QC Software & Tools Accessories
Streamlined Connection with USB Type-C
Evolve Your Image Reading
The Shape of Comfort
Rest Assured with Image Consistency
Product Sustainability
Our Contribution to SDGs
High Fidelity Images for Peace of Mind
6 megapixel medical monitor with DICOM® Part 14 calibration ideal for viewing a variety of medical images such as chest X-ray, CT, or endoscopy accurately.
Multi-Modality Capability with 6MP Resolution
The spacious 30-inch screen displays 6 megapixels (3280 x 2048 pixels) of information. Multi-modality capability enables the simultaneous display of examination images, such as chest X-ray, CT, endoscopy, or ultrasound, offering a high degree of freedom in the layout and facilitating efficient image reading.

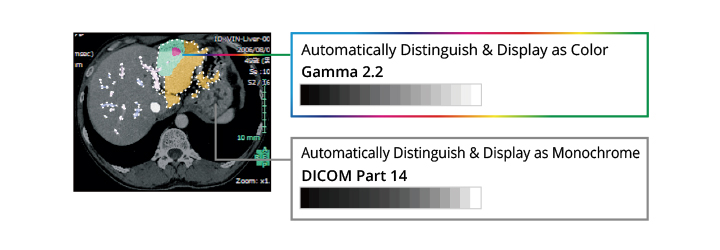

Hybrid Display of Monochrome and Color
The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen.
Visual AssessmentThe Kumamoto Chuo Hospital, Japan, conducted a visual assessment of the Hybrid Gamma PXL function included with RadiForce monitors. An improvement of approximately 37% was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images. See the White Paper "The Advantages of Hybrid Gamma PXL" [PDF] |
|
Achieve Clarity True to the Source Data
A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.
MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.270 cycles/mm) the MTF increases by over 50%.
Make the Precise DiagnosisEIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis. |
|

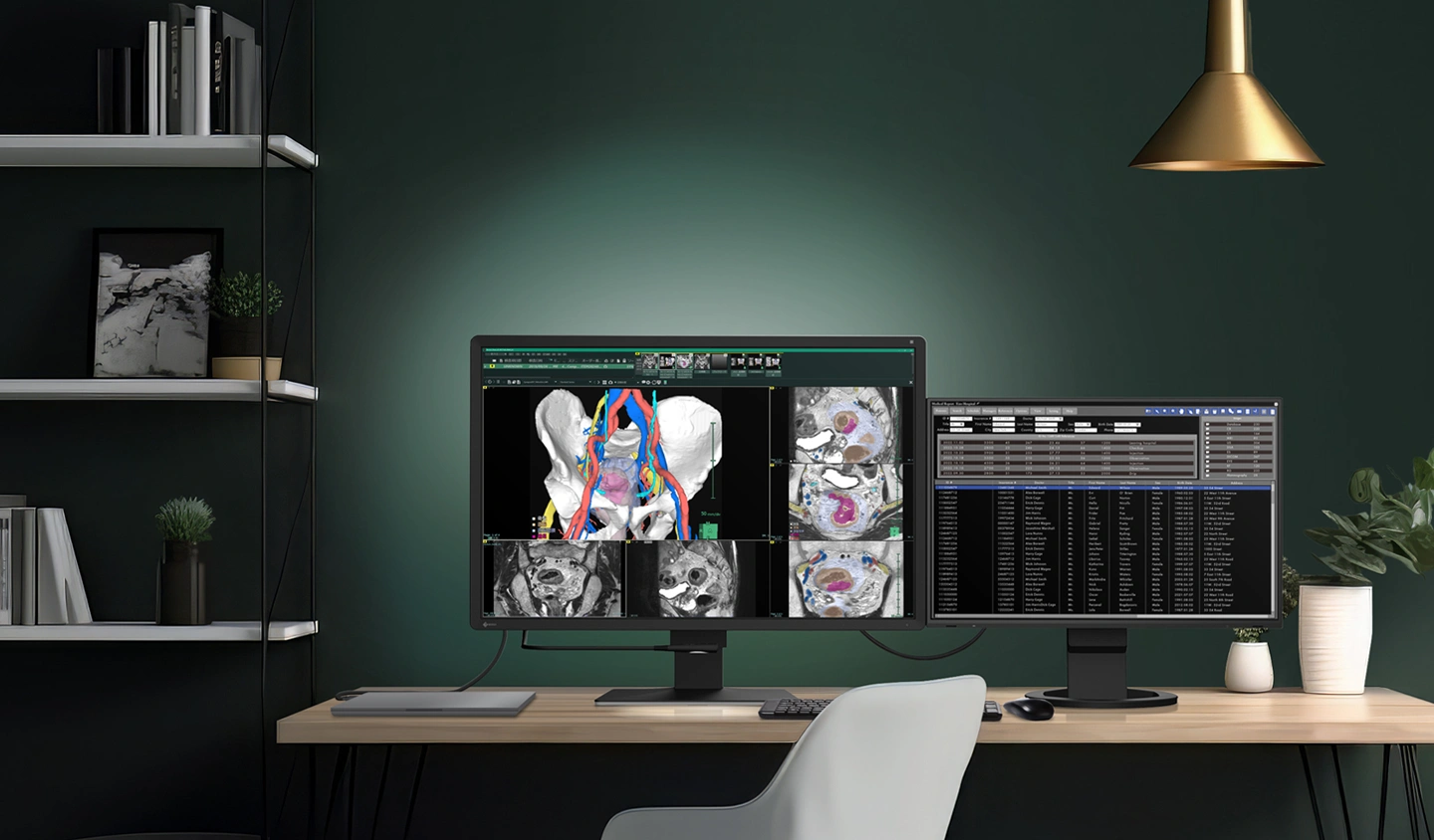

Streamlined Connection with USB Type-C
The monitor features a USB Type-C® connectivity that allows you display video, transmit USB signals, supply power to connected mobile workstations, and even transmit a network signal. Furthermore, multi-screen setup can easily be established with simple daisy chain connection. This convenient multi-purpose connectivity makes it faster and easier to connect your mobile workstation when working remotely or at home.
Mobile Workstation Power Delivery
The 94 watt power delivery via USB Type-C reliably charges mobile workstations. This eliminates the need for a mobile workstation's bulky power supply unit, freeing up space in your bag and on the desk.
Stable Wired Network Connection
The monitor has LAN port directly built in for a stable wired connection. Connecting mobile workstation via USB Type-C allows access to the network through the monitor, making it useful when security policies require a wired connection.
Directly Connect Peripherals
While many modern mobile workstations are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a mobile workstation to the monitor via USB Type-C gives access to a hub with three USB Type-A and one USB Type-C ports for easily connecting an external keyboard, mouse, or headset.
The USB Type-C port cannot be used as a USB external device connection when used for daisy-chain connection.
Hassle-Free Multi-Monitor Setup
The monitor's USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single USB Type-C video signal output of mobile workstations. This allows you to configure a multi-monitor setup without hassle of excess cabling.
A multi-monitor configuration lets you display multiple screens simultaneously, such as reports, examination lists, and patient charts. This reduces the need to switch windows frequently or scroll compared to the small screen of a mobile workstation, facilitating a boost in efficiency.
RadiForce Monitor Using USB Type-C Daisy Chain Compatibility
Tap below to see how EIZO fits into your workspace with augmented reality.
- Supported Models:
- iPhone 6s or later, iPad (5th generation or later)
- Supported Browsers:
- Safari, Chrome
Tap below to see how EIZO fits into your workspace with augmented reality.
- Supported Models:
- ARCore supported Android devices
- Supported Browsers:
- Chrome
-
Scan the code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality. - Supported Models:
- iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices - Supported Browsers:
- Safari, Chrome

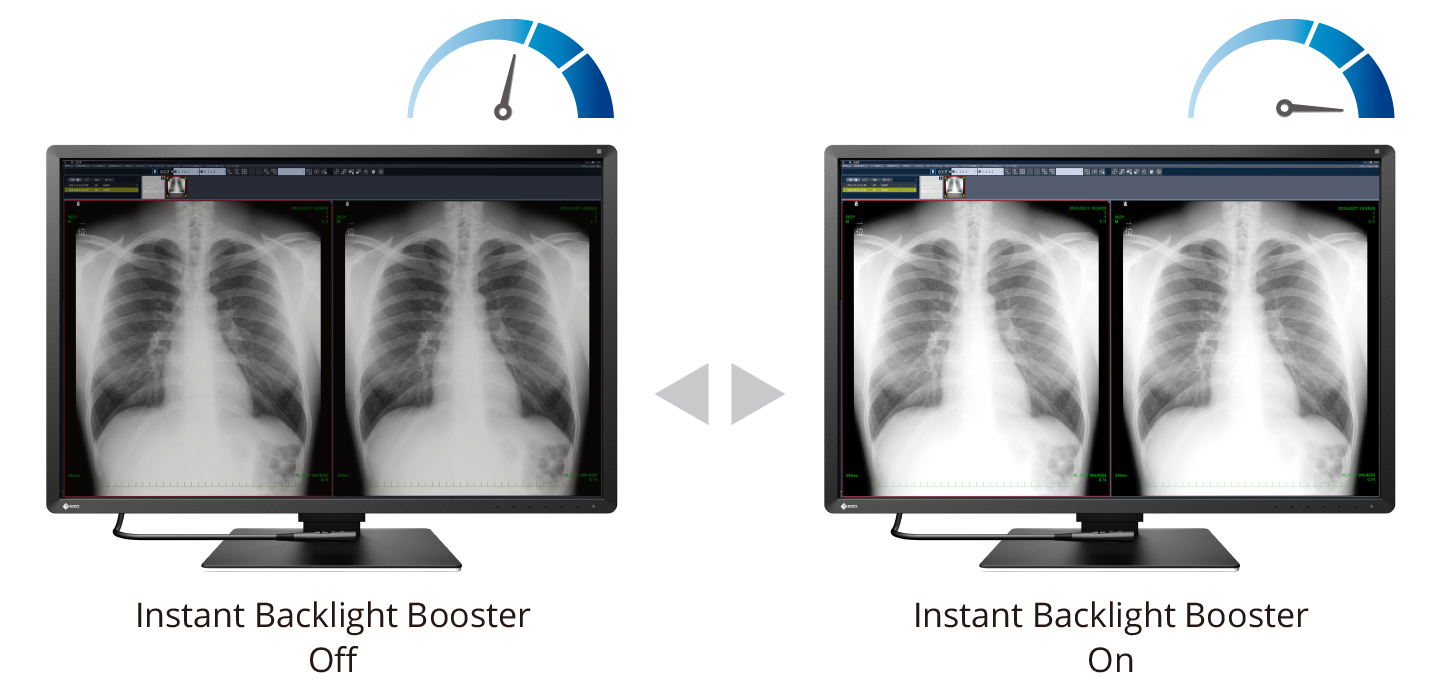

Boost Images for Easy Viewing
The Instant Backlight Booster function temporarily maxes the brightness of the monitor at the push of a button, allowing users to efficiently view medical images which require higher brightness to distinguish details.
DICOM Part 14 is not supported while Instant Backlight Booster is on.
Barrier-Free Workstyle
With the Switch-and-Go function USB switching is done within the monitor. This enables users to use a single keyboard and mouse across two PCs. Users can easily work on either PC by simply moving the mouse cursor across the screens. This enhances work efficiency and creates a cleaner workspace.
Select the Ideal Mode for Modalities
The Manual Mode Switch function allows you to choose various modes for different modalities such as chest X-ray, CT, endoscopy, and pathology. Modes can be set to automatically switch to optimal image viewing conditions.
Preset Mode for Whole Slide Imaging Review
The monitor comes with a preset mode, called Pathology Mode, for the viewing and analysis of microscopic cell and tissue structures. This mode helps support whole slide imaging (WSI), or virtual microscopy, used in pathology for the digital archiving and referencing of highly detailed microscopic images.
This product has not received FDA 510 (k) clearance for Digital Pathology Display.
The Shape of Comfort
In addition to high display performance and innovative functions, the monitor offers a compact design that provides a comfortable reading environment.
Elegant Curved Design
The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic. Rounded corners and elegant curves on the back present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.
Eye Relief with Comfort Light
The built-in comfort light gently illuminates the wall behind the monitor without interfering with the low ambient lighting typical of reading rooms. This reduces the contrast between the wall and monitor to prevent eye fatigue without creating glare on the screen.
Easily Navigate Your WorkspaceIt is also equipped with a spotlight which allows you to see printed documents or your keyboard. The position can be easily adjusted in order to achieve the ideal lighting. |
|
Rest Assured with Image Consistency
Maintain Image Quality Over Time
An monitor's color and brightness characteristics naturally shift with use over time. Since this occurs gradually, it can be difficult to detect when this happens. Implementing a quality control solution ensures that your monitor's display characteristics stay consistent.
With the Integrated Front Sensor (IFS) built into the front bezel of the RadiForce monitor and RadiCS LE software (included), you can easily calibrate to DICOM Part 14 without having to mount, run, and remove an external sensor.
Simple calibration using the monitor backlight sensor is also supported.
Stay Confident with Stable Brightness
EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year limited warranty.
Product Sustainability
Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. EIZO is committed carrying out responsible manufacturing practices to maintain high product quality, while keeping the environment in mind.
Conserve to Preserve
The RX670 is made of more than 77% recycled plastic. This mitigates on the amount of plastic waste going into the environment, conserves resources, and promotes reuse of materials for preserving the natural ecosystems.
Cushioning Environmental Impact
The monitor uses molded pulp made from recycled cardboard and newspaper in its packaging instead of conventional recycled styrofoam or plastic, and cables are wrapped in paper instead of plastic bags.
We also implement following initiatives:
- Use of halogen-free PCBs (printed circuit board)
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Supporting a Healthy Life Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies. |
  |
|
|
Environmentally Conscious Our healthcare products are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system. |
  |
| Model Variations |
RX670-BK: Anti-Glare coating, with stand, black
RX670-ARBK: Anti-Reflection coating, with stand, black |
|---|---|
| Panel | |
| Type | Color (IPS) |
| Backlight | LED |
| Size | 30.0" (76.2 cm) |
| Native Resolution | 3280 x 2048 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 645.5 x 403.0 mm |
| Pixel Pitch (H x V) | 0.1968 x 0.1968 mm |
| Display Colors |
10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 1100 cd/m2 |
| Recommended Brightness for Calibration | 500 cd/m2 |
| Contrast Ratio (typical) | 1800:1 |
| Response Time (typical) | 25 ms (black-white-black) |
| Video Signals | |
| Input Terminals | USB Type-C (DisplayPort Alt Mode), DisplayPort x 2, HDMI |
| Output Terminals | USB Type-C (daisy chain) |
| Digital Scanning Frequency (H / V) | 31 - 127 kHz / 59 - 61 Hz |
| USB | |
| Upstream |
USB 2.0: Type-B x 2,
USB 2.0: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.) |
| Downstream |
USB 2.0: Type-A x 3
USB 2.0: Type-C (DisplayPort Alt Mode, Power Delivery Source 15 W max.） |
| USB LAN Adapter | RJ-45 (1000BASE-T) |
| Power | |
| Power Input | AC 100 - 240 V: 50 / 60 Hz |
| Typical Power Consumption | 61 W |
| Maximum Power Consumption | 279 W |
| Power Save Mode | 0.5 W or less |
| Sensor | Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Hybrid Gamma PXL | Yes |
| Work-and-Flow | Hide-and-Seek, Switch-and-Go, Point-and-Focus, Instant Backlight Booster |
| Preset Modes | CAL Switch (DICOM, CAL, Patho, Custom, sRGB, Text) |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Net Weight | 15.8 kg |
| Net Weight (Without Stand) | 11.5 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Certifications & Standards (Please contact EIZO for the latest information.) | CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC |
| FDA | 510(k) Clearance for General Radiography |
| Dedicated Software | |
| Monitor Quality Control Software RadiCS | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | USB Type-C (1.5 m), DisplayPort (3 m) x 2, HDMI (3 m) |
| Others | AC power cord (3 m), USB Type-A - USB Type-B cable (3 m) x 2, cable cover, Utility Disk (RadiCS LE, PDF installation manual), instructions for use |
| Warranty | 5 Years |
| Dimension Drawing |
Brochures
 |
|
Manuals
| RX670 Instructions for Use | English | 1.44 MB |
|
| RX670 Instructions for Use | German | 1.45 MB |
|
| RX670 Instructions for Use | French | 1.46 MB |
|
| RX670 Instructions for Use | Russian | 1.47 MB |
|
| RX670 Instructions for Use | Italian | 1.45 MB |
|
| RX670 Instructions for Use | Czech | 1.45 MB |
|
| RX670 Instructions for Use | Swedish | 1.44 MB |
|
| RX670 Instructions for Use | Chinese-Simplified | 1.92 MB |
|
| RX670 Instructions for Use | Chinese-Traditional | 1.97 MB |
|
| RX670 Instructions for Use | Arabic | 1.47 MB |
|
| RX670 Instructions for Use | Danish | 1.45 MB |
|
| RX670 Instructions for Use | Dutch | 1.45 MB |
|
| RX670 Instructions for Use | Finnish | 1.44 MB |
|
| RX670 Instructions for Use | Greek | 1.47 MB |
|
| RX670 Instructions for Use | Korean | 1.56 MB |
|
| RX670 Instructions for Use | Norwegian | 1.44 MB |
|
| RX670 Instructions for Use | Polish | 1.45 MB |
|
| RX670 Instructions for Use | Portuguese | 1.45 MB |
|
| RX670 Instructions for Use | Spanish | 1.45 MB |
|
| RX670 Instructions for Use | Turkish | 1.44 MB |
|
| RX670 Instructions for Use | Estonian | 1.44 MB |
|
| RX670 Instructions for Use | Latvian | 1.45 MB |
|
| RX670 Instructions for Use | Lithuanian | 1.45 MB |
|
| RX670 Instructions for Use | Romanian | 1.45 MB |
|
| RX670 Instructions for Use | Slovak | 1.45 MB |
|
| RX670 Instructions for Use | Slovene | 1.44 MB |
|
| RX670 Instructions for Use | Hungarian | 1.45 MB |
|
| RX670 Instructions for Use | Bulgarian | 1.46 MB |
|
| RX670 Instructions for Use | Croatian | 1.45 MB |
|
| RX670 Installation Manual | English | 840 KB |
|
| RX670 Installation Manual | German | 850 KB |
|
| RX670 Installation Manual | French | 849 KB |
|
| RX670 Installation Manual | Russian | 868 KB |
|
| RX670 Installation Manual | Chinese-Simplified | 1.15 MB |
|
| RX670 Installation Manual | Chinese-Traditional | 1.17 MB |
|
