RadiNET Pro
Network QC Management Software
For unified management of
all monitors in the hospital with
a secure network and server.

  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • QC Software & Tools Accessories

Making Each Life Visual



Optimal Quality Control of Monitors in Your Hospital

Maintain Quality Control for a Large Number of Monitors

For many hospitals, maintaining quality control of a large number of monitors consumes a great deal of time and labor. EIZO offers centralized management of client monitors connected to the hospital network, providing increased efficiency of monitor QC operations.
Optimal Quality Control of Monitors in Your Hospital



New

Administrative Efficiency with Comprehensive Dashboard

The dashboard function allows you to easily check management and operational status of all RadiForce monitors in the hospital at a glance. Data is arranged in a comprehensive graph format so administrators can quickly assess information and handle administrative processes more efficiently.

Administrative Efficiency with Comprehensive Dashboard




Centralized Monitor Management

RadiNET Pro enables centralized management of all client PC monitors with RadiCS software installed via the intra-hospital network. Because it is a web-based application, administrators can easily conduct monitor QC operations from anywhere in the hospital via the web browser.

Centralized Monitor Management

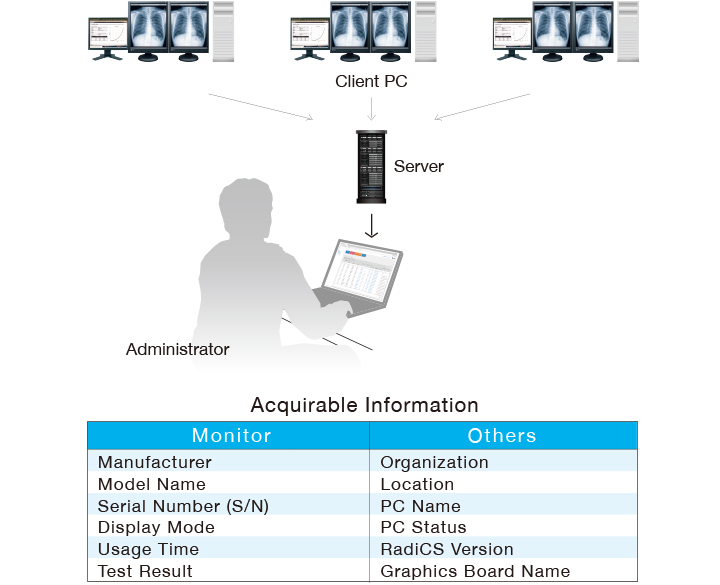

Unified Asset Management

The asset information, such as model name and usage time of both RadiForce monitors and FlexScan EV-Series monitors used for displaying patient lists, can be displayed using RadiNET Pro. Information such as the connected PC and graphics board, medical institution, and installation location can also be acquired for diverse asset management. For example, by switching monitors with long usage times with those that have short usage times, the total average usage time can be more effectively managed.

In addition, management rules can be set using the intuitive on-screen wizard, to optimize the operation of monitors in different groups and facilities.


Unified Asset Management

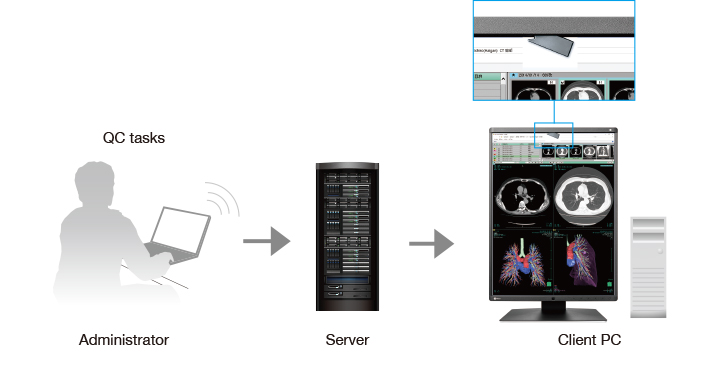

Save Time with Remote Calibration

QC tasks such as testing and calibration using the Integrated Front Sensor (IFS) can be performed remotely. This dramatically reduces the time and effort of the users and administrators required for calibration of the monitors.

Save Time with Remote Calibration



Collective Report Generator

Results of acceptance and constancy tests and calibration history, along with all the monitor data can be created in reports or printouts. For extra convenience, collective reports of multiple monitors can also be generated as one report and printed out.

Collective Report Generator

One Time Remote Setting

In addition to scheduling monitor calibration, and acceptance and constancy tests, a group policy can be set for settings such as the Backlight Saver and Monitor Power Switch in accordance with each facility's situation. This group policy can be set according to each facility or department using an intuitive on-screen wizard.

One Time Remote Setting




Securely Follow Group Policy

In order to effectively use a group policy, not only are the policy settings important, but so is the reliability of their operation. When installing a new client monitor, the policy may need to be manually applied to each new monitor. With RadiNET Pro the configured group policy is installed automatically to new monitors. This allows monitor management to begin automatically according to a policy chosen in advance by the administrator.

Securely Follow Group Policy

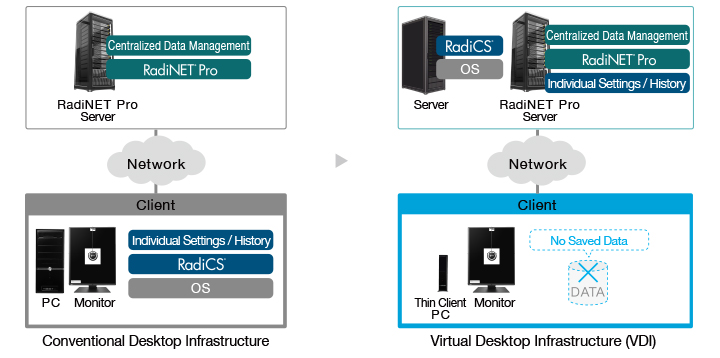

Work on a Virtual Desktop Infrastructure (VDI)

For the purpose of improving work efficiency, reducing costs, and saving space, virtual desktops are becoming increasingly common in the medical field. With RadiNET Pro Version 5.0.0, it is possible to centrally manage client monitors from a virtual desktop infrastructure.

Work on a Virtual Desktop Infrastructure (VDI)




Contact us to learn more about features of the software.

Manageable Number of PCs / Monitors 1000 PCs / 8000 Monitors Maximum
Administrator PC Browser Microsoft Edge 79 or later
Google Chrome browser
Administrator PC Resolution 1024 x 768 Minimum
Server PC Operating Systems Windows Server 2022 Standard
Windows Server 2019 Standard
Windows Server 2016 Standard
Windows Server 2012 R2 Standard
Windows 11 Pro / Enterprise
Windows 10 Pro / Enterprise (64-bit)
Server PC Database SQL Server 2022 Standard / Express Edition
SQL Server 2019 Standard / Express Edition
SQL Server 2016 Standard / Express Edition SP3
Server PC Hard Disk Drive 150 GB Minimum
Server PC Memory 8 GB Minimum
Languages English, German, Japanese, Chinese, French, Spanish

Brochures

RadiForce general
14.4 MB

Download



Compatibility

Date Subject
January 23, 2019 A USB signal transmission error may occur between some PCs and EIZO monitors when using EIZO software.
Quality Control Software & Tools
RadiCS UX2

- Quality Control Software
- UX2 Calibration Sensor bundled

For RadiForce
5 Monitor Access License
5 Monitor Access License

- Monitor Access License must be purchased for every 5 additional monitors when using RadiNET Pro Version 5
