Product Name
21.3" Color LCD Monitor
A 2 megapixel high-brightness medical monitor ideal for accurate display of CT/MRI monochrome and 3D rendering/nuclear medicine color images.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Graphics Boards
  • QC Software & Tools Accessories



High Fidelity Images for Peace of Mind

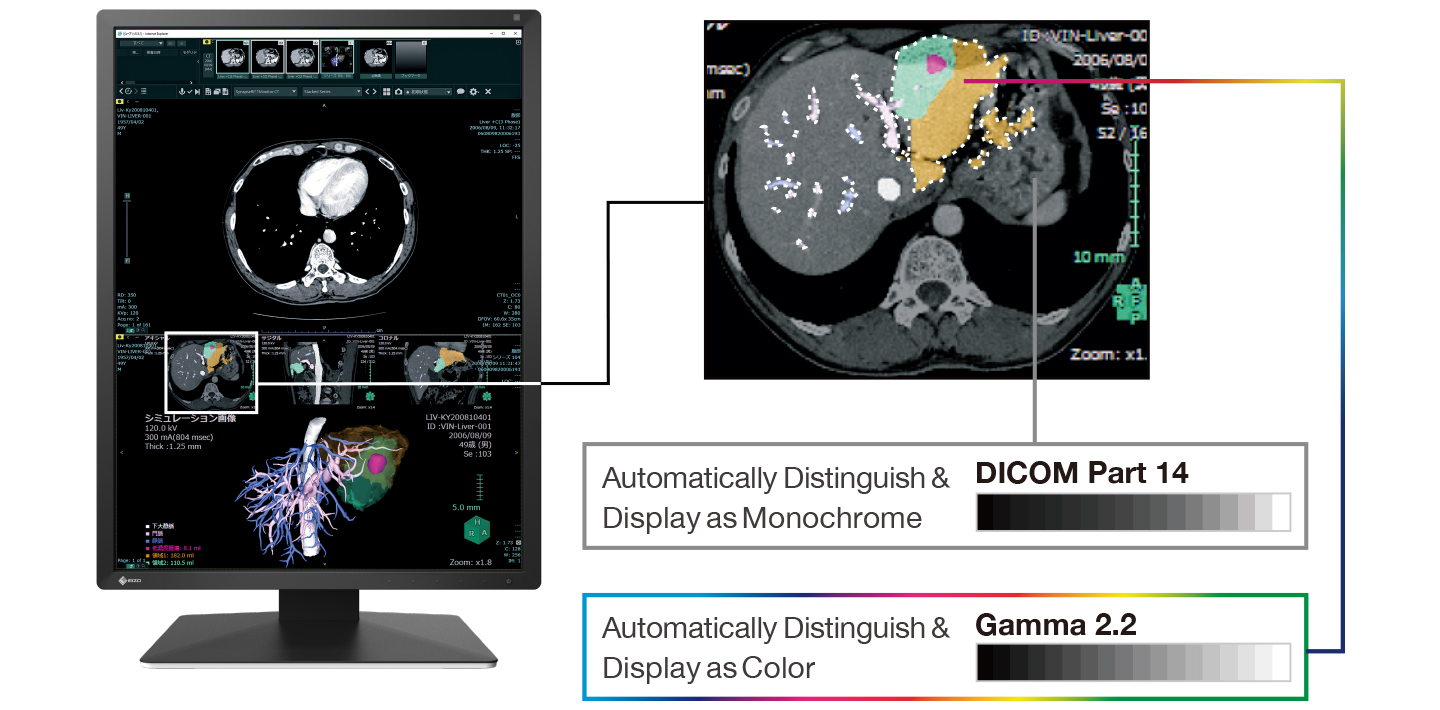

Hybrid Display of Monochrome and Color

Hybrid Display of Monochrome and ColorThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen.

Hybrid Display of Monochrome and Color



Visual Assessment

The Kumamoto Chuo Hospital, Japan, have conducted a visual assessment of the Hybrid Gamma PXL function included on the RadiForce monitor. An improvement of approximately 37% was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.

See the White Paper "The Advantages of Hybrid Gamma PXL" [PDF]

Visual Assessment

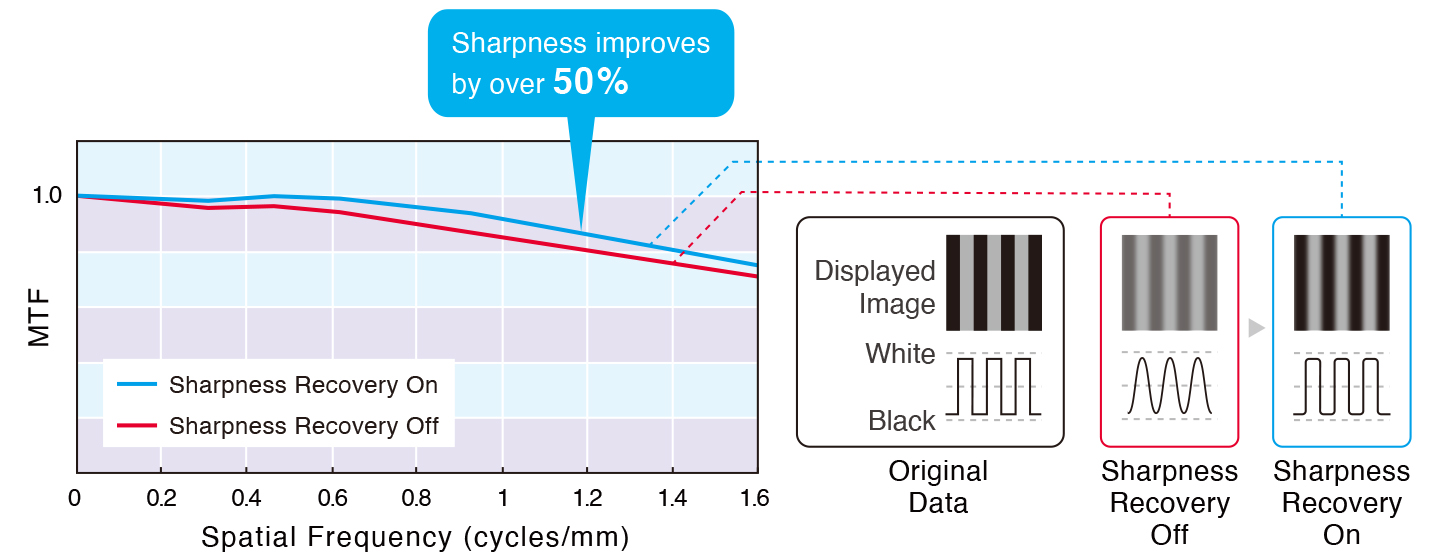

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 0.926 cycles/mm) the MTF increases by over 50%.

Achieve Clarity True to the Source Data



Screen Variations for Specific User Needs

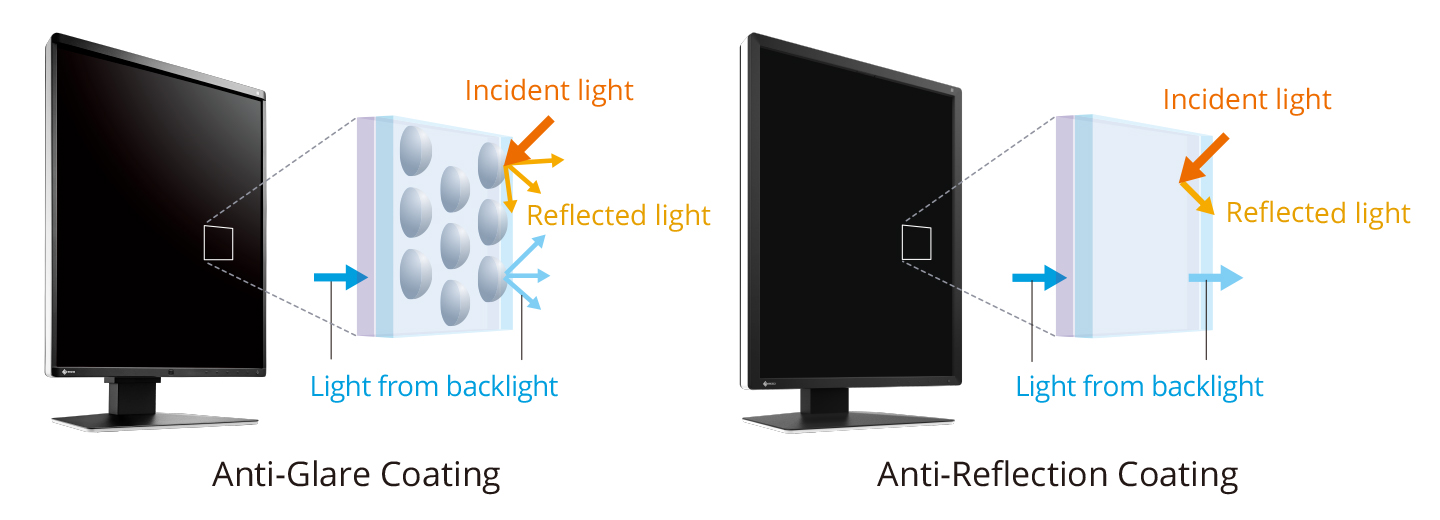

EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments. AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting. AR treatment is ideal for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.

Read more about AR treatment [PDF]

Screen Variations for Specific User Needs





Make the Precise Diagnosis

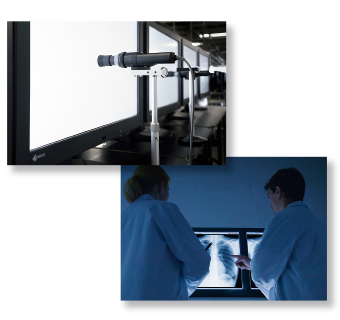

EIZO carefully measures and sets the grayscale at the factory to ensure each monitor is compliant with DICOM Part 14. Furthermore, at startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level and compensates the brightness fluctuations caused by the ambient temperature and the passage of time, allowing medical images to be faithfully reproduced with stable brightness and grayscale.

Make the Precise Diagnosis






Streamlined Modern Image Reading

The workload of radiologists has been increasing due to the diversification of image reading environments. RadiForce medical monitors provide functions and accessories designed to improve reading efficiency, comfort, and convenience.



Evolve Your Image Reading

Work-and-Flow_logo.jpgEIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow functions with the RadiForce monitor and bundled RadiCS LE software.


Boost Images for Easy Viewing

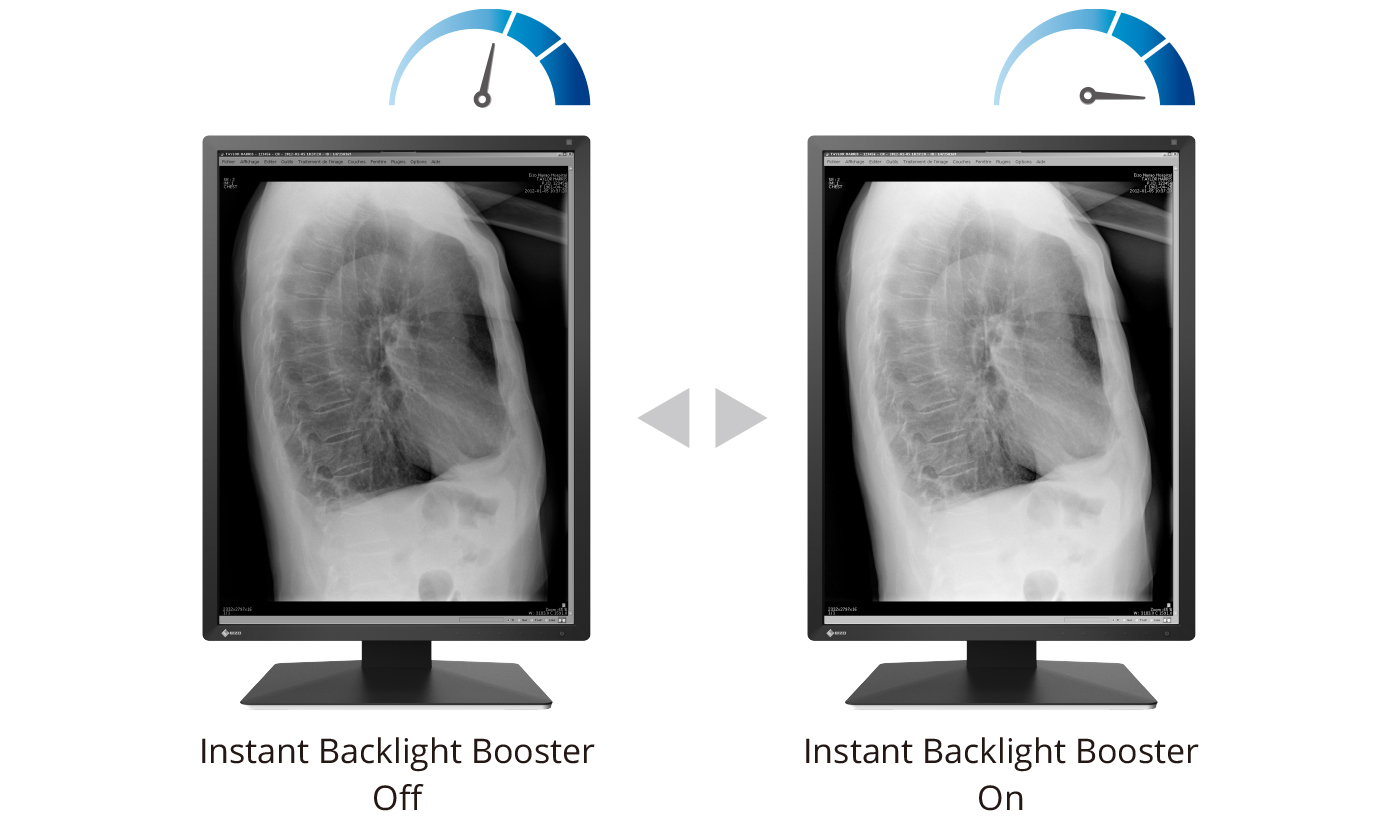

The Instant Backlight Booster function temporarily maxes the brightness of the monitor for quickly viewing details in medical images. A single hotkey allows users to turn the function on for multiple monitors at once so they can easily view more than one screen under the same high-brightness conditions.

DICOM Part 14 is not supported while Instant Backlight Booster is on.

Instant Backlight Booster

See more with animation gif_animation_icon



Barrier-Free Workstyle

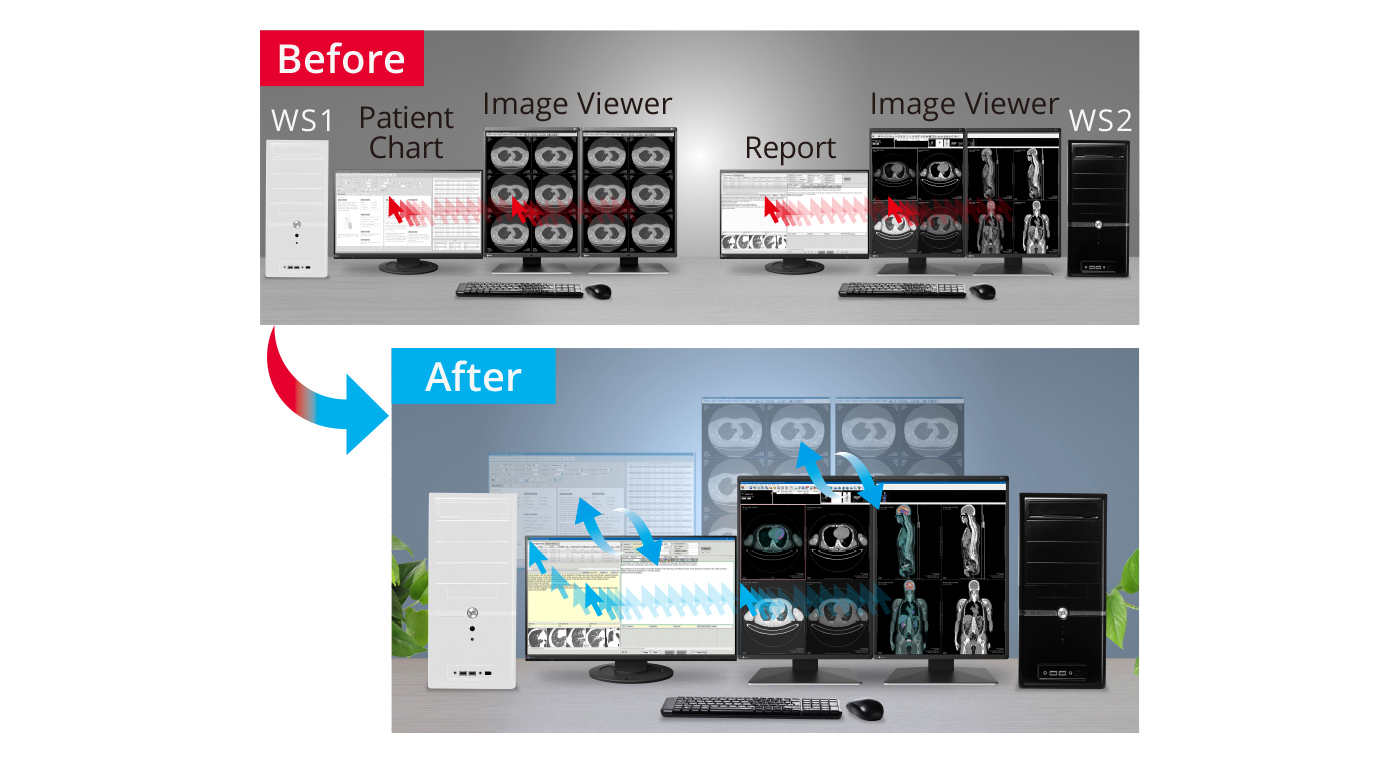

With the Switch-and-Go function, you can operate two different workstations at the same time with a single mouse and keyboard. Easily move the cursor from one screen to the other or switch the signals between workstations as needed without having to change your mouse or keyboard each time. This also makes it possible to reduce the total number of monitors, mice, and keyboards in the configuration for an improved workflow.

Switch-and-Go

See more with animation gif_animation_icon

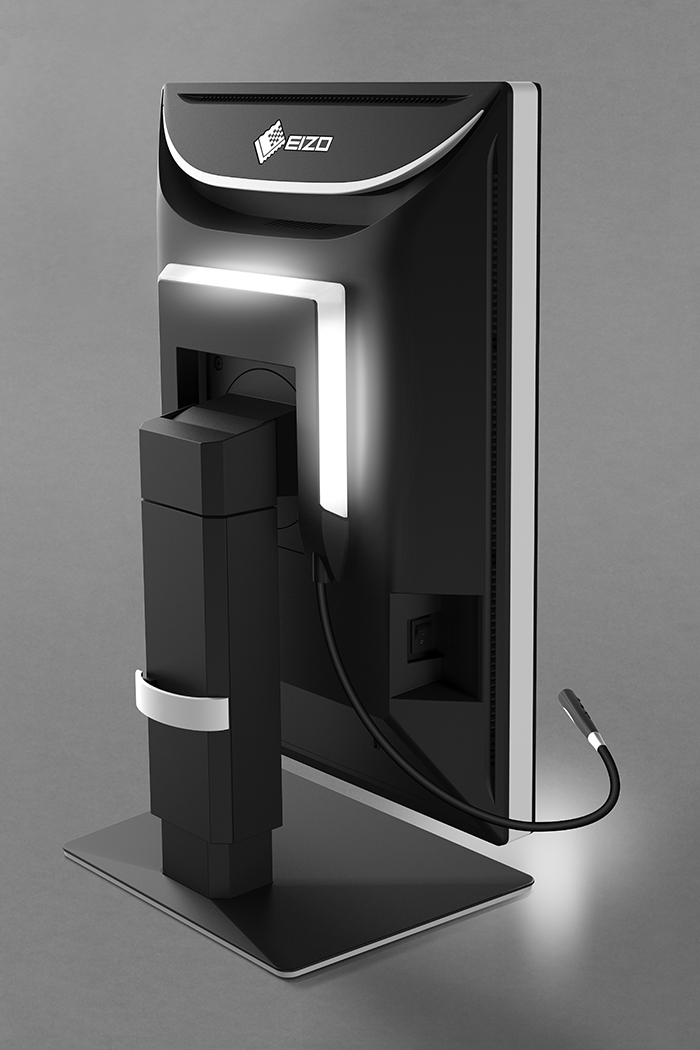

Eye Relief with Gentle Light

RadiLight is an optional light that attaches to the back of a RadiForce monitor and illuminates the wall behind it. This reduces eye strain for the radiologist viewing a bright monitor in a dark environment, while ensuring there are no reflections on the screen to interfere with reading. It can be attached directly to the monitor without removing the stand and does not take up additional desk space.

Read more about RadiLight

RadiLight






Convenient Connectivity for Comfortable Use

Hassle-Free Multi-Monitor Configuration

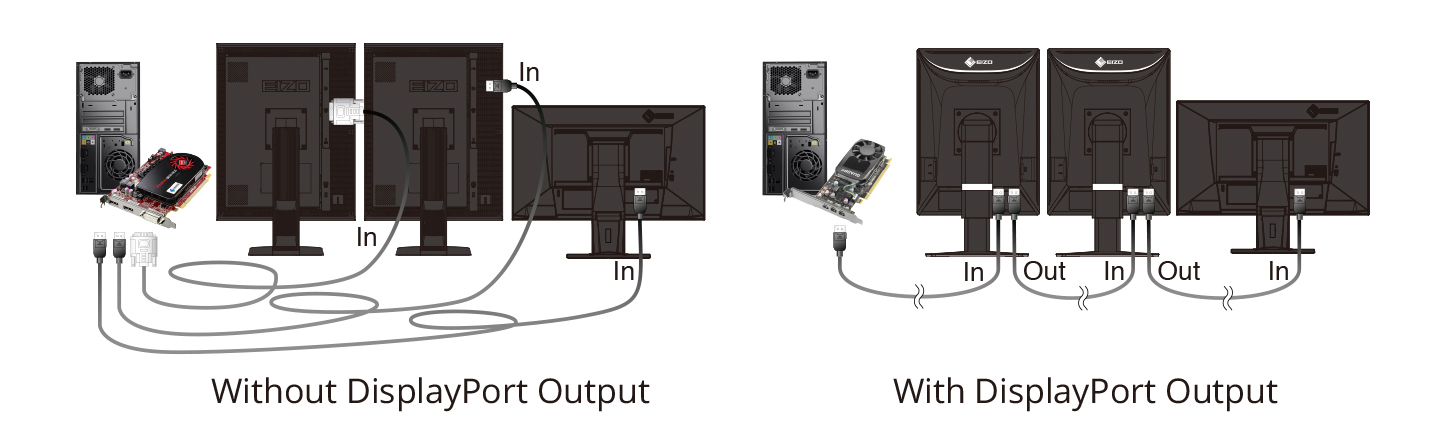

Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.

A graphics board that supports daisy chain is necessary.

Compatibility between RadiForce monitors using DisplayPort daisy chains

Hassle-Free Multi-Monitor Configuration



Elegant Cabinet Design

The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic. The monitor's cabinet is designed with rounded corners and elegant curves on the back to present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

Elegant Cabinet Design

USB Hub and USB Type-C for Charging

The monitor is equipped with two USB Type-A downstream ports for connecting a mouse, keyboard, or other USB devices. It is also equipped with a USB Type-C port with up to 15 watt (5V/3A) power supply for charging smartphones and tablets. The USB Type-C port does not allow the computer to access the device's memory or settings, so you can rest assured that it remains secure while connected.

USB Hub and USB Type-C for Charging








Rest Assured with Image Consistency

Maintain Image Quality Over Time

An monitor's color and brightness characteristics naturally shift with use over time. Since this occurs gradually, it can be difficult to detect when this happens. Implementing a quality control solution ensures that your monitor's display characteristics stay consistent.


With the Integrated Front Sensor (IFS) built into the front bezel of the RadiForce monitor and RadiCS LE software (included), you can easily calibrate to DICOM Part 14 without having to mount, run, and remove an external sensor.

Simple calibration using the monitor backlight sensor is also supported.

Maintain Image Quality Over Time



Furthermore, EIZO offers RadiNET Pro Web Hosting, a cloud-based solution that enables quality control of connected monitors over the network. Since EIZO hosts the server, this saves you the time and resources typically needed to setup and maintain a server.

Read more about RadiNET Pro Web Hosting

RadiNET Pro Web Hosting

Stay Confident with Stable Brightness

EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.



Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year full warranty.






Care for the Environment

Conserve to Preserve

EIZO is committed carrying out responsible manufacturing practices to maintain high product quality, while keeping the environment in mind. RX270 is made of approximately 16% recycled plastic. This mitigates on the amount of plastic waste going into the environment, conserves resources, and promotes reuse of materials for preserving the natural ecosystems.

Conserve to Preserve



Cushioning Environmental Impact

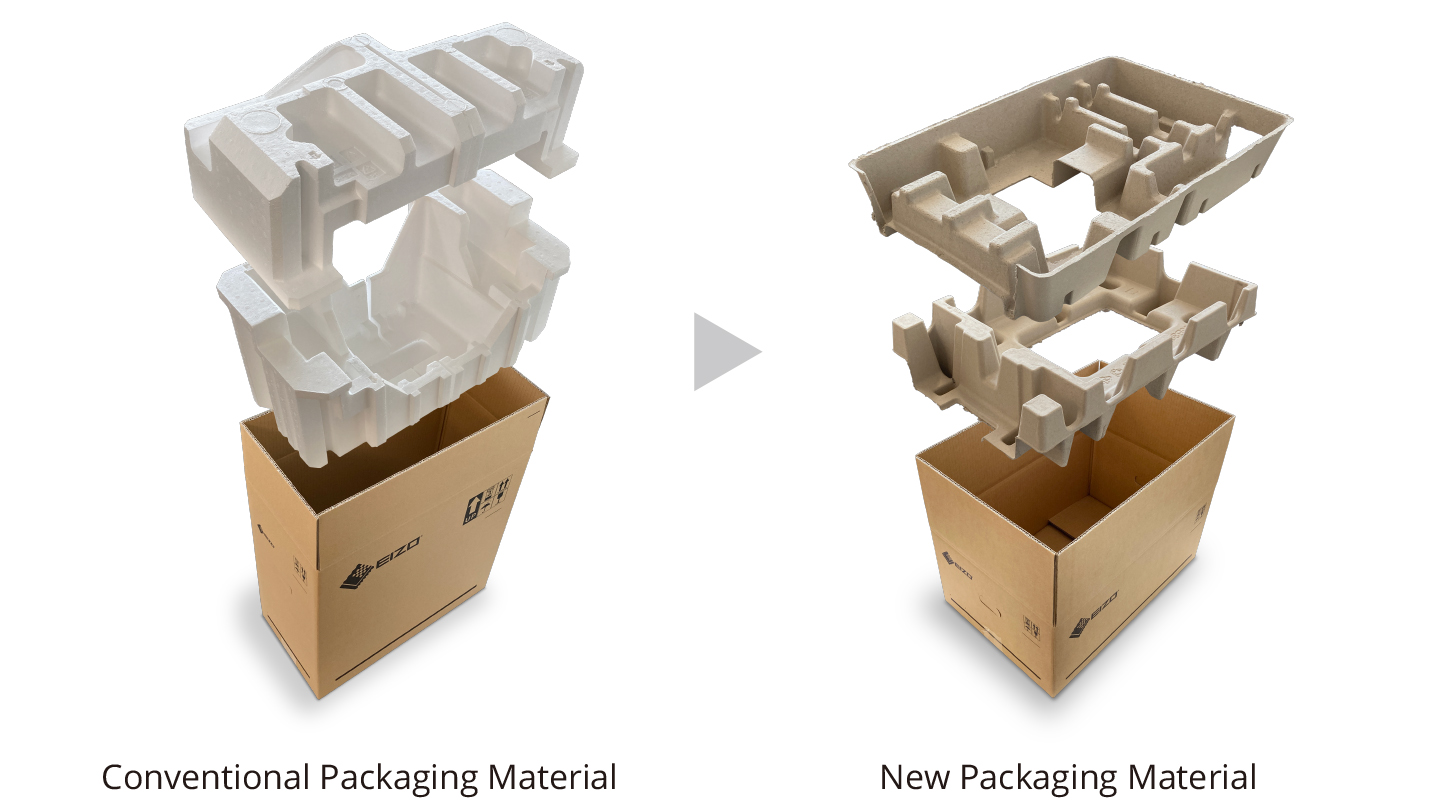

EIZO monitors are moving away from using plastic and styrofoam in the packaging to reduce environmental impact. The RX270 is safely packed using molded pulp, which is made from recycled cardboard and newspaper, and cables are wrapped in environmentally friendly pulp sheet instead of plastic bags.

Conserve to Preserve

Molded pulp



We also implement  following  initiatives:

  • Partial use of halogen-free PCBs (printed circuit board)



Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.

SDGs 03SDGs 08

Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12
Model Variations RX270-BK: Anti-Glare coating, with stand, black
RX270-ARBK: Anti-Reflection coating, with stand, black
Panel
Type Color (IPS)
Backlight LED
Size 21.3" (54.0 cm)
Native Resolution 1200 x 1600 (3:4 aspect ratio)
Viewable Image Size (H x V) 324.0 x 432.0 mm
Pixel Pitch 0.270 x 0.270 mm
Display Colors 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 1000 cd/m2
Recommended Brightness for Calibration 500 cd/m2
Contrast Ratio (typical) 1800:1
Response Time (typical) 20 ms (black-white-black)
Video Signals
Input Terminals DisplayPort x 2, DVI-D
Output Terminals DisplayPort (daisy chain)
Digital Scanning Frequency (H / V) 31 - 100 kHz / 59 - 61 Hz
USB
Upstream USB 2.0: Type-B x 2
Downstream USB 2.0: Type-A x 2
Dedicated Charging Port USB Type-C (Power Supply 15 W max.)
Power
Power Input AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption 33 W
Maximum Power Consumption 98 W
Power Save Mode 1 W or less
Sensor Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Hybrid Gamma PXL Yes
Work-and-Flow Switch-and-Go, Point-and-Focus, Instant Backlight Booster
Preset Modes CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 7.7 kg
Net Weight (Without Stand) 4.9 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC
FDA Pending: 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DisplayPort (3 m) x 2
Others AC power cord (3 m), USB Type-A - USB Type-B cable (3 m) x 2, Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual), instructions for use
Warranty 5 Years
Dimension Drawing PDF

Brochures

NEW
RadiForce RX270
843 KB

Download



Manuals

Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page*. If you have forgotten your User ID or Password, please send us an e-mail.

* This user registration form is a CRM web marketing tool provided by Tricorn Corporation called KREISEL. By clicking on the form, you will be forwarded to the KREISEL page.

Languages

Document Language Size Download
RX270 Instructions for Use English 720 KB Download
RX270 Installation Manual English 2.25 MB Download
RX270 Instructions for Use Arabic 745 KB Download
RX270 Instructions for Use Chinese-Simplified 2.49 MB Download
RX270 Installation Manual Chinese-Simplified 2.58 MB Download
RX270 Instructions for Use Chinese-Traditional 1.02 MB Download
RX270 Installation Manual Chinese-Traditional 2.49 MB Download
RX270 Instructions for Use Czech 723 KB Download
RX270 Instructions for Use Danish 719 KB Download
RX270 Instructions for Use Dutch 722 KB Download
RX270 Instructions for Use Finnish 716 KB Download
RX270 Instructions for Use French 730 KB Download
RX270 Installation Manual French 2.27 MB Download
RX270 Instructions for Use German 727 KB Download
RX270 Installation Manual German 2.27 MB Download
RX270 Instructions for Use Greek 744 KB Download
RX270 Instructions for Use Italian 721 KB Download
RX270 Instructions for Use Korean 775 KB Download
RX270 Instructions for Use Norwegian 718 KB Download
RX270 Instructions for Use Polish 727 KB Download
RX270 Instructions for Use Portuguese 721 KB Download
RX270 Instructions for Use Russian 742 KB Download
RX270 Installation Manual Russian 2.28 MB Download
RX270 Instructions for Use Spanish 723 KB Download
RX270 Instructions for Use Swedish 716 KB Download
RX270 Instructions for Use Turkish 719 KB Download
RX270 Instructions for Use Estonian 715 KB Download
RX270 Instructions for Use Latvian 721 KB Download
RX270 Instructions for Use Lithuanian 721 KB Download
RX270 Instructions for Use Romanian 723 KB Download
RX270 Instructions for Use Slovak 726 KB Download
RX270 Instructions for Use Slovene 715 KB Download
RX270 Instructions for Use Hungarian 723 KB Download
RX270 Instructions for Use Bulgarian 738 KB Download
RX270 Instructions for Use Croatian 718 KB Download

Compatibility

Date Subject
October 30, 2018 Compatibility between RadiForce monitors using DisplayPort daisy chains
Graphics Boards
MED-XN92

- EIZO original driver and bios
- PCI-Express x16
- Daisy chain supported

Graphics Boards
MED-XN72

- EIZO original driver and bios
- PCI-Express x16
- Daisy chain supported

Graphics Boards
MED-XN51LP

- EIZO original driver and bios
- PCI-Express x16
- Daisy chain supported

Graphics Boards
MED-XN31LP

- EIZO original driver and bios
- PCI-Express x16
- Daisy chain supported

Recommended
Quality Control Software & Tools
RadiCS UX2

- Quality Control Software
- UX2 Calibration Sensor bundled

Quality Control Software & Tools
UX2 Sensor

- Quality Control External Calibration Sensor

Comfort Light for Reading Rooms
RadiLight

- Comfort Light for Reading Rooms

Arms
LA-011-W

35° up tilt and 180° swivel wide adjustment range

Panel Protector
RP-915

- Protect against dust and scratches
- Fit between screen and bezel
- Integrated Front Sensor usable

Monitor Cleaning Kit
ScreenCleaner

- Keep your screen free from dust and fingerprints
- Includes pump spray and cloth
