RadiForce MS236WT-A
23.0" Touch Panel Color LCD Monitor
Multitouch monitor featuring smooth and detailed writing with DICOM preset mode for displaying medical records.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Graphics Boards
  • QC Software & Tools Accessories

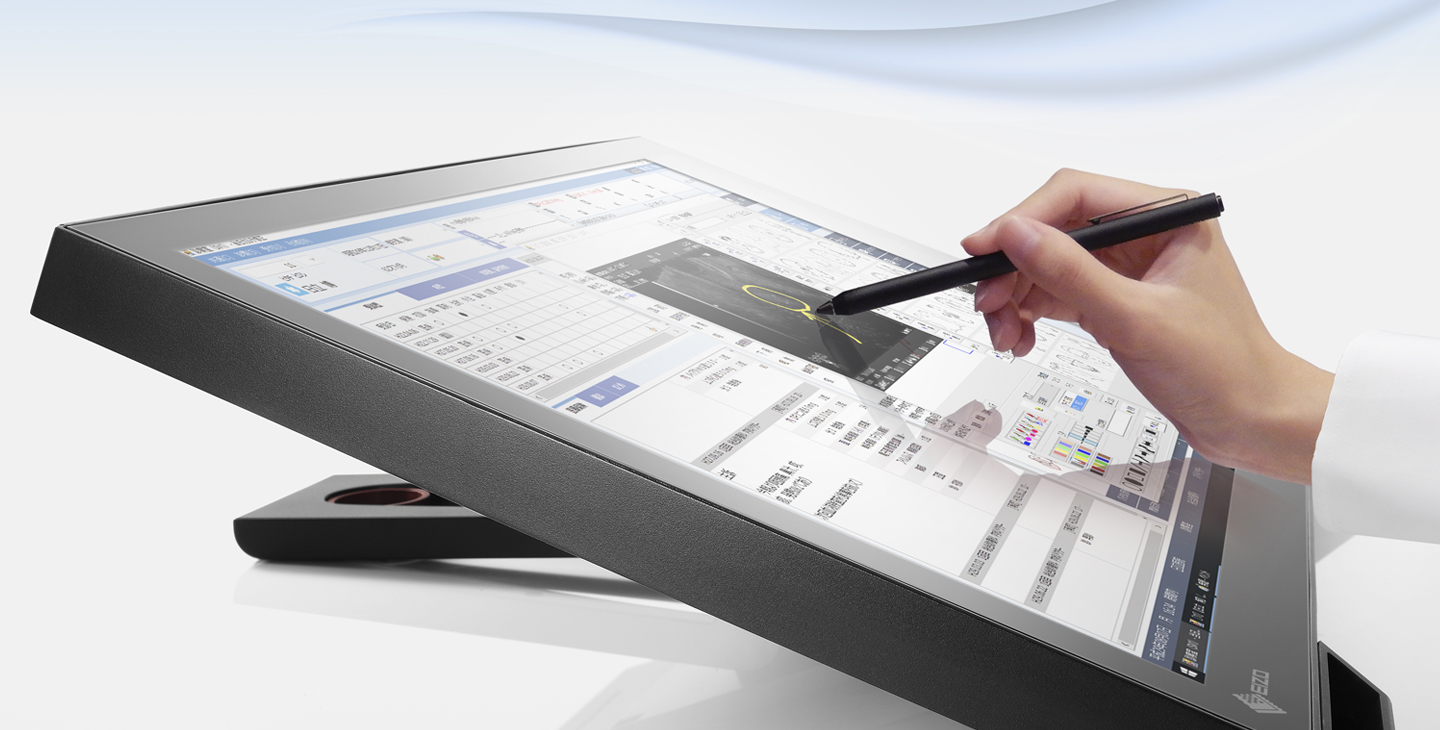

Smooth and Detailed Handwriting with Stylus Pen

The monitor features projected capacitive (PCAP) touch technology which is more reliable compared to other touch technologies, allowing for smooth swipe and flick operations. In addition to the supplied passive touch pen, the monitor also accepts input from commercially available active stylus pens, so detailed notes can easily be written on a medical record.

Smooth and Detailed Handwriting with Stylus Pen

stylus pen
See stylus compatibility details here.



Multitouch Interface

The screen can detect up to 10 simultaneous touches so multiple people can easily operate a variety of applications.

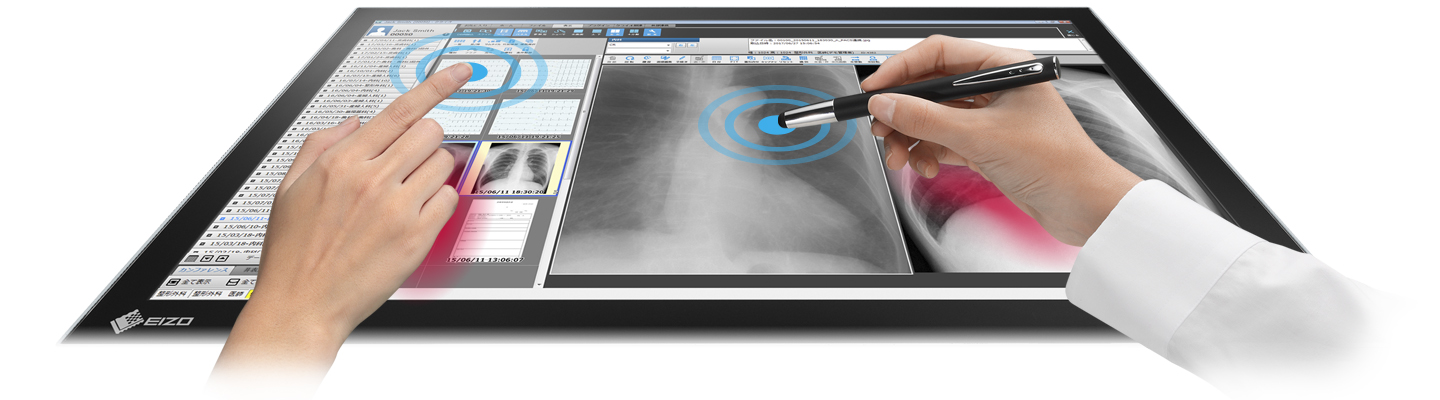

Rest Your Hand on the Screen While Writing

The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input, so you can write from a more natural position.

Palm rejection minimum activation area is 2 x 2 cm.

Rest Your Hand on the Screen While Writing




DICOM Preset Mode

The monitor comes with a DICOM Part 14 mode for which grayscale tones are preset at EIZO’s factory for the optimally displaying monochrome medical images alongside patient charts.

DICOM Preset Mode



Comfort and Ease-of-Use with Fully Flat Design

The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling easy. Furthermore, the smooth surface makes cleaning fingerprints and dust a breeze.


Comfortable, Fully Flat Design



High Durability

The screen has a non-scratch surface made of reinforced glass with a hardness of 5H, making it durable for long-term use.



Touch Detection Control

Touch Detection ControlUsers can easily turn touch detection on or off by pushing the button conveniently located on the monitor's side. This helps to prevent unintended input while the monitor is not being used.



Quick Recovery Controls

The monitor is equipped with technology which calibrates the touch sensitivity to minimize incorrect touch response due to environmental factors and electromagnetic noise. This ensures that the screen maintains accurate touch interaction during use.

When installing for the first time, the bundled "TPOffset (software for adjusting touch panel sensitivity)" is necessary.



Dedicated Touch Panel Driver

In addition to Windows' standard touch panel driver, a dedicated touch panel driver is also available to support touch interaction sounds and mouse emulation. The monitor comes with built-in stereo speakers for hearing touch interaction sounds when close to the screen.

Compatible OS: Windows 11 / 10 / 8.1

Available as a free download here



Clear View from Any Angle

The monitor uses an LED-backlit IPS panel with wide viewing angles that minimizes color shift and contrast changes even when multiple people view the screen.

Clear View from Any Angle




Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The MS236WT-A relieves eye fatigue by regulating brightness to make flicker unperceivable.

Flicker-Free Viewing



Various Input Terminals

The monitor is equipped with DisplayPort, HDMI, and D-Sub video signal inputs which are conveniently located on the side for flexible connection.


Various Input Terminals




Model Variation

The monitor comes with or without a reclining stand and in gray or black cabinet color variations so you can choose the ideal model for your environment.

Model Variation



Reclining Stand

Reclining StandThe reclining stand provides flexible positioning to allow the monitor to rest flat on your desk or to sit upwards at the ideal angle, making touch operation and writing comfortable and intuitive.

3-Year Warranty

EIZO and its authorized distributors offer a three-year limited warranty.





Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.

SDGs 03SDGs 08

Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12
Model Variations MS236WT-ALGY: with Reclining Stand, gray
MS236WT-ALBK: with Reclining Stand, black
MS236WT-AFGY: without stand, gray
MS236WT-AFBK: without stand, black
Panel
Type Color (IPS)
Backlight LED
Size 23.0" (58.0 cm)
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 509.2 x 286.4 mm
Pixel Pitch 0.265 x 0.265 mm
Display Colors 8-bit: 16.77 million from a palette of 1.06 billion (10-bit) colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 260 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 11 ms (gray-to-gray)
Touch Panel
Type Projected Capacitive
Touch Points 10
Surface Treatment Anti-Glare coating
Communication Protocol USB
Surface Hardness 5 H
Compatible OS Windows 11, Windows 10 / 8.1 (64-bit, 32-bit)
Video Signals
Input Terminals DisplayPort (HDCP1.3), HDMI (HDCP1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V) 31 - 68 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 31 - 81 kHz / 55 - 76 Hz
Sync Formats Separate
USB
Upstream USB 3.1 Gen 1: Type-B
Downstream USB 3.1 Gen 1: Type-A x 2
Audio
Speakers 1.0 W + 1.0 W
Input Terminals Stereo mini jack, DisplayPort, HDMI
Power
Power Input AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption 15 W
Maximum Power Consumption 47 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes User1, User2, sRGB, DICOM
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 6.6 kg
Net Weight (Without Stand) 6 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, PSE, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA Class I
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DisplayPort (3 m), HDMI (3 m)
Others AC power cord (3 m), USB Type-A - USB Type-B cable (3 m), touch pen, holder for touch pen, Utility Disk (user's manual, touch panel driver, TPOffset), cleaning cloth, mask sheet x 2 (MS236WT-AL), Screw for VESA mount x 4 (MS236WT-AF), Cable clamper
Warranty 3 Years
Dimension Drawing PDF

Brochures

RadiForce MS236WT-A
1.53 MB

Download



Manuals

Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page*. If you have forgotten your User ID or Password, please send us an e-mail.

* This user registration form is a CRM web marketing tool provided by Tricorn Corporation called KREISEL. By clicking on the form, you will be forwarded to the KREISEL page.

Languages

Document Language Size Download
MS236WT-A Instructions for Use English 849 KB Download
MS236WT-A Installation Manual English 3.22 MB Download
MS236WT-A Instructions for Use Arabic 873 KB Download
MS236WT-A Instructions for Use Chinese-Simplified 2.15 MB Download
MS236WT-A Installation Manual Chinese-Simplified 3.57 MB Download
MS236WT-A Instructions for Use Chinese-Traditional 1.16 MB Download
MS236WT-A Installation Manual Chinese-Traditional 3.49 MB Download
MS236WT-A Instructions for Use Czech 851 KB Download
MS236WT-A Instructions for Use Danish 848 KB Download
MS236WT-A Instructions for Use Dutch 849 KB Download
MS236WT-A Instructions for Use Finnish 845 KB Download
MS236WT-A Instructions for Use French 857 KB Download
MS236WT-A Installation Manual French 3.23 MB Download
MS236WT-A Instructions for Use German 853 KB Download
MS236WT-A Installation Manual German 3.23 MB Download
MS236WT-A Instructions for Use Greek 871 KB Download
MS236WT-A Instructions for Use Italian 849 KB Download
MS236WT-A Instructions for Use Korean 909 KB Download
MS236WT-A Instructions for Use Norwegian 847 KB Download
MS236WT-A Instructions for Use Polish 854 KB Download
MS236WT-A Instructions for Use Portuguese 849 KB Download
MS236WT-A Instructions for Use Russian 870 KB Download
MS236WT-A Installation Manual Russian 3.25 MB Download
MS236WT-A Instructions for Use Spanish 850 KB Download
MS236WT-A Instructions for Use Swedish 845 KB Download
MS236WT-A Instructions for Use Turkish 847 KB Download
MS236WT-A Instructions for Use Estonian 845 KB Download
MS236WT-A Instructions for Use Latvian 849 KB Download
MS236WT-A Instructions for Use Lithuanian 848 KB Download
MS236WT-A Instructions for Use Romanian 850 KB Download
MS236WT-A Instructions for Use Slovak 854 KB Download
MS236WT-A Instructions for Use Slovene 844 KB Download
MS236WT-A Instructions for Use Hungarian 851 KB Download
MS236WT-A Instructions for Use Bulgarian 866 KB Download
MS236WT-A Instructions for Use Croatian 846 KB Download

Compatibility

Date Subject
June 23, 2022 EIZO Touch Panel Monitor and Stylus Compatibility
