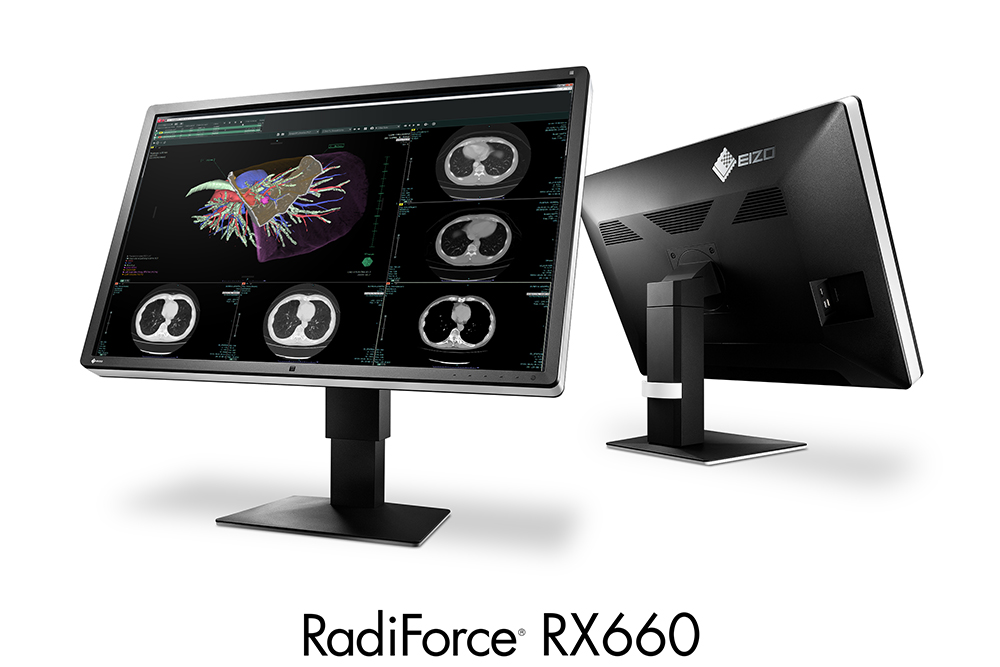

Product Name
30.0" Color LCD Monitor
A 6 megapixel monitor ideal for viewing a variety of medical images at the same time including CR, DR, CT, MRI, and ultrasound. Featuring a new design and unique EIZO technology, this monitor offers precise medical image viewing as well as ease-of-use.

  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Graphics Boards
  • QC Software & Tools Accessories

Case Studies

prev next

Making Each Life Visual




Evolve Your Image Reading


As more image modalities become digitalized, radiologists are viewing an increasing amount of information on their screens. EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow features with the RadiForce RX660 and bundled RadiCS LE software.

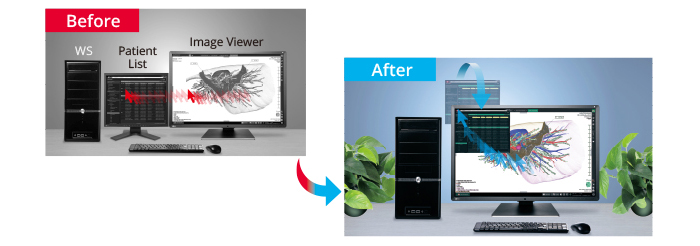

Quick Information Referencing

The Hide-and-Seek function enables users to easily hide the PinP (Picture in Picture) window not currently in use and reopen it as needed by moving the mouse cursor to the edge of the screen. This eliminates the need for an extra monitor while still allowing quick and efficient viewing of reports, patient charts, and other information.



See more with animation gif_animation_icon

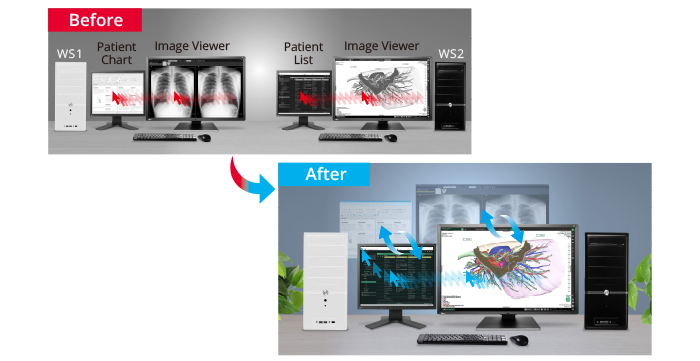

Barrier-Free Workstyle

With the Switch-and-Go function USB switching is done within the monitor. This enables users to use a single keyboard and mouse across two PCs. Users can easily work on either PC by simply moving the mouse cursor across the screens. This enhances work efficiency and creates a cleaner workspace.




See more with animation gif_animation_icon

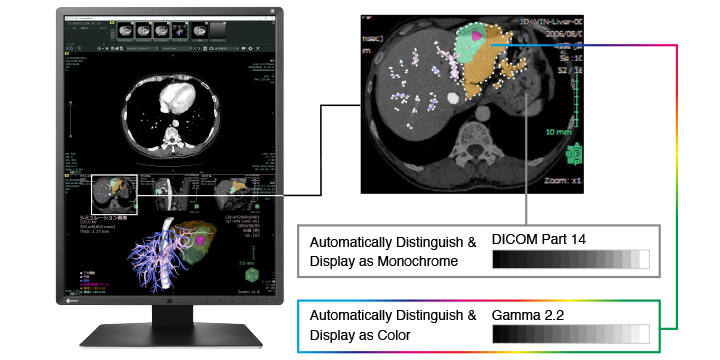

Display Both Monochrome and Color

Hybrid Gamma PXLThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. This gives it greater accuracy and reliability than the conventional area-detection method.

As a result, monochrome images such as x-ray, MRI and CT are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as ultrasound and endoscopy can be faithfully reproduced corresponding to Gamma 2.2. This will improve the efficiency of viewing both monochrome and color images together on the one screen.


Display Both Monochrome and Color


Visual Assessment

The Kumamoto Chuo Hospital, Japan, have conducted a visual assessment of the Hybrid Gamma PXL function included on the RadiForce monitor. Approximately a 37% improvement was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.


See the White Paper "The Advantages of Hybrid Gamma PXL" [PDF]

Visual Assessment

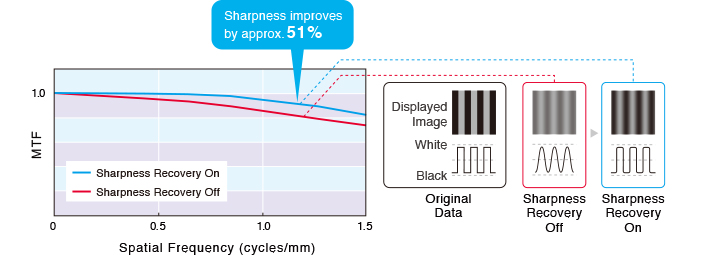

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored . This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.



MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.270 cycles/mm) the MTF increases by approximately 51%.

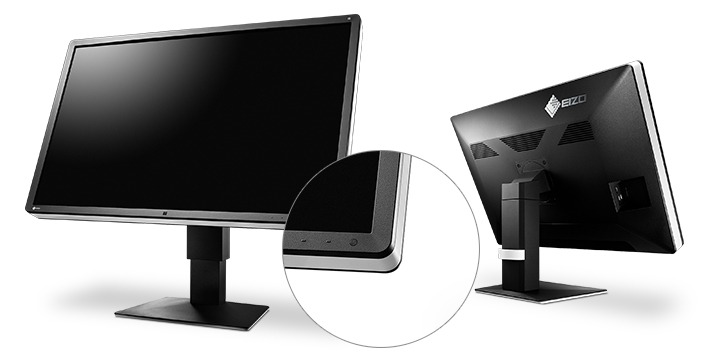

Create the Ideal Environment

The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic.

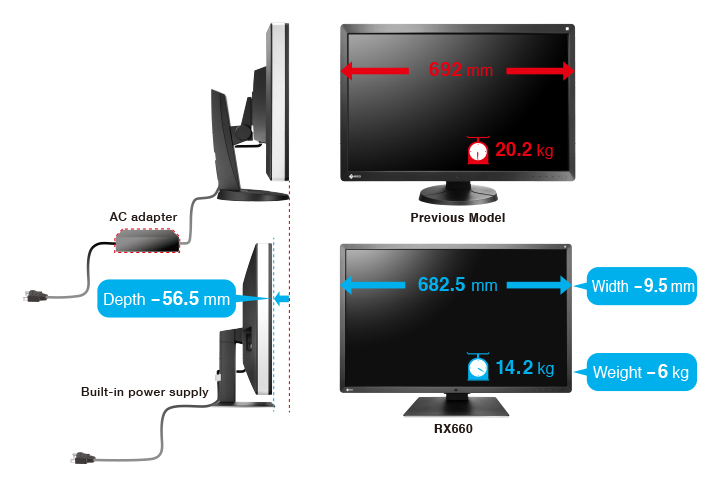

Save Work Space with Sleek Cabinet Design

Compared to its predecessor, the monitor's width and depth were reduced by 9.5 mm and 56.5 mm respectively. In addition, the size of the power supply was greatly reduced and now comes built into the monitor. This results in a monitor that takes up 23% less space, giving you more room for other tasks. It is also 6 kg lighter than the previous model for ease of installation.







Hassle-Free Multi-Monitor Configuration

The monitor is equipped with DisplayPort 1.2 input and output terminals. Using a single cable connected to the input terminal, the monitor displays 6 megapixel resolution. In addition, using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.

A graphics board that supports daisy chain is necessary.



Compatibility between RadiForce monitors using DisplayPort daisy chains








Seamlessly View Images

The monitor is equipped with Picture by Picture (PbyP) to allow you to view input from two separate video signals on a single screen. In addition, the monitor's slim bezels offers a more comfortable multi-monitor layout for viewing images side-by-side for seamless viewing.



Seamlessly View Images

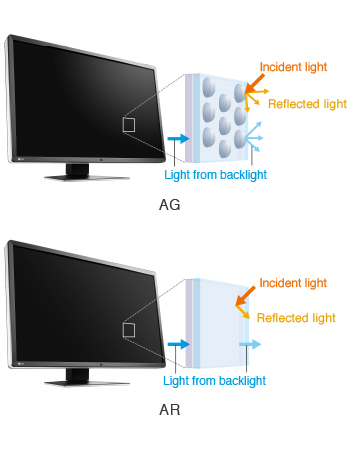

Variations for Specific User Needs

EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments. AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting. AR treatment is ideal for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.

Read more about AR treatment [PDF]

Variations for Specific User Needs




Make the Precise Diagnosis

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

Make the Precise Diagnosis




Maintain the Precision

Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.

Maintain the Precision

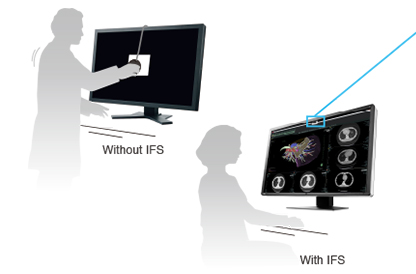

Manage Effortless Quality Control

A built-in Integrated Front Sensor (IFS) measures brightness and grayscale tones to calibrate to DICOM Part 14. The IFS does not interfere with the viewing area while in use to cut workload and maintenance costs needed for monitor quality control.



Manage Effortless Quality Control RX660 IFS
IFS swings onto the screen

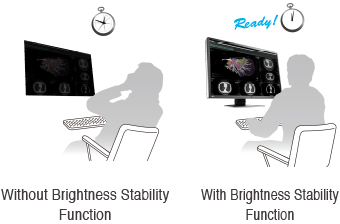

View Accurate Images in Moments

The EIZO-patented drift correction function quickly stabilizes the brightness level of the monitor upon startup or wakeup from sleep mode, giving you the most accurate images quickly ready for viewing. In addition, a sensor measures the backlight brightness and automatically compensates for brightness fluctuations caused by ambient temperature and aging for a consistently stable display.

View Accurate Images in Moments

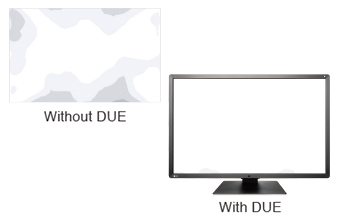

Attain Steady Images Across the Screen

The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.

Attain Steady Images Across the Screen





Comfortably View from Any Angle

Wide viewing angles allow you to view the screen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.





Select the Ideal Mode for Modalities

The CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy. Using the bundled RadiCS LE software, modes can be set to automatically switch to optimal image viewing conditions.

Select the Ideal Mode for Modalities




Experience Smooth Color Reproduction

The monitor supports 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate color reproduction for 3D color rendering and image fusion.

10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display.

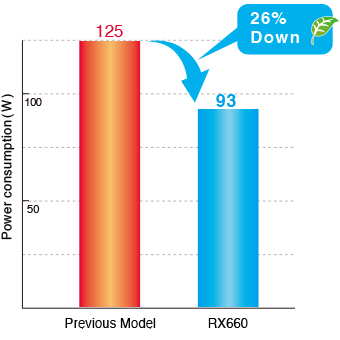

Save on Power Consumption

The RadiForce RX660 uses a new panel equipped with an energy-efficient LED backlight which reduces power consumption by 26% compared to its predecessor.

EIZO's internal measurement under RX660's recommended brightness of 500 cd/m2.

Save on Power Consumption




Conserve Energy While Away

A presence sensor prompts the monitor to switch to power save mode when the user is away and resumes operation upon their return to conserve power when not in use. In the latest RadiForce models, the sensor detects the user's presence using a heat sensing method. This increases the range and angle of detection compared to conventional detection methods, making it effective when using multiple monitors.

Conserve Energy While Away




Improve Operability

EIZO's highly versatile stand offers tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort.




Stay Confident with Stable Brightness

EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.




Rest Assured with Medical Qualifications

The monitors meet the strictest medical, safety, and EMC emission standards.

Rest Assured with Medical Qualifications




Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.





Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.

SDGs 03SDGs 08

Environmentally Conscious
Our healthcare products are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12
Model Variations RX660-BK: Anti-Glare coating, with stand, black
RX660-ARBK: Anti-Reflection coating, with stand, black
Panel
Type Color (IPS)
Backlight LED
Size 30.0" (76 cm)
Native Resolution 3280 x 2048 (16:10 aspect ratio)
Viewable Image Size (H x V) 645.5 x 403.0 mm
Pixel Pitch (H x V) 0.1968 x 0.1968 mm
Display Colors 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 1000 cd/m2
Recommended Brightness for Calibration 500 cd/m2
Contrast Ratio (typical) 1500:1
Response Time (typical) 25 ms (black-white-black)
Video Signals
Input Terminals DisplayPort x 2, DVI-D (dual link)
Output Terminals DisplayPort (daisy chain)
Digital Scanning Frequency (H / V) 31 - 127 kHz / 22 - 61 Hz
USB
Upstream USB 2.0: Type-B x 2
Downstream USB 2.0: Type-A x 3
Power
Power Input AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption 93 W
Maximum Power Consumption 190 W
Power Save Mode 1.6 W or less
Sensor Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Hybrid Gamma PXL Yes
Work-and-Flow Hide-and-Seek, Switch-and-Go, Point-and-Focus
Preset Modes CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 14.2 kg
Net Weight (Without Stand) 10.1 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables Dual Link DVI-D (3 m), DisplayPort (3 m) x 2, DisplayPort (0.28 m)
Others AC power cord (3 m), USB Type-A - USB Type-B cable (3 m) x 2, cable cover, Utility Disk (RadiCS LE, PDF installation manual), instructions for use
Warranty 5 Years
Dimension Drawing PDF

Brochures

RadiForce general
14.4 MB

Download



Manuals

Languages

RX660 Instructions for Use English 2 MB PDF
RX660 Instructions for Use German 1.95 MB PDF
RX660 Instructions for Use French 1.99 MB PDF
RX660 Instructions for Use Russian 1.89 MB PDF
RX660 Instructions for Use Italian 1.91 MB PDF
RX660 Instructions for Use Czech 1.85 MB PDF
RX660 Instructions for Use Swedish 1.87 MB PDF
RX660 Instructions for Use Chinese-Simplified 2.55 MB PDF
RX660 Instructions for Use Chinese-Traditional 2.6 MB PDF
RX660 Instructions for Use Arabic 1.84 MB PDF
RX660 Instructions for Use Danish 1.87 MB PDF
RX660 Instructions for Use Dutch 1.87 MB PDF
RX660 Instructions for Use Finnish 1.85 MB PDF
RX660 Instructions for Use Greek 1.88 MB PDF
RX660 Instructions for Use Korean 2.11 MB PDF
RX660 Instructions for Use Norwegian 1.87 MB PDF
RX660 Instructions for Use Polish 1.87 MB PDF
RX660 Instructions for Use Portuguese 1.89 MB PDF
RX660 Instructions for Use Spanish 1.88 MB PDF
RX660 Instructions for Use Turkish 1.84 MB PDF
RX660 Instructions for Use Estonian 1.85 MB PDF
RX660 Instructions for Use Latvian 1.85 MB PDF
RX660 Instructions for Use Lithuanian 1.86 MB PDF
RX660 Instructions for Use Romanian 1.84 MB PDF
RX660 Instructions for Use Slovak 1.85 MB PDF
RX660 Instructions for Use Slovene 1.79 MB PDF
RX660 Instructions for Use Hungarian 1.87 MB PDF
RX660 Instructions for Use Bulgarian 1.86 MB PDF
RX660 Instructions for Use Croatian 1.84 MB PDF
RX660 Instruction Manual English 701 KB PDF
RX660 Instruction Manual German 742 KB PDF
RX660 Instruction Manual French 769 KB PDF
RX660 Instruction Manual Russian 747 KB PDF
RX660 Instruction Manual Chinese-Simplified 1.15 MB PDF
RX660 Instruction Manual Chinese-Traditional 1.19 MB PDF

Compatibility

Date Subject
October 30, 2023 HP Z6 G5 Workstation and FlexScan, RadiForce Compatibility
August 3, 2023 HP Z4 G5 Workstation and FlexScan, RadiForce Compatibility
June 27, 2023 Compatibility between RadiForce monitors using DisplayPort daisy chains
November 1, 2022 HP Z2 SFF G9, Z2 Tower G9, Z2 Mini G9 Workstation and FlexScan, RadiForce Compatibility
February 1, 2022 HP Z2 SFF G5, Z2 Tower G5, Z2 G8 Tower Workstation and FlexScan, RadiForce Compatibility
June 24, 2021 Dell Precision 5820 Tower and RadiForce Compatibility
March 11, 2021 HP Z2 Mini G5, Z2 G5 SFF, Z2 Tower G5 Workstation and FlexScan, RadiForce Compatibility
December 22, 2020 Thunderbolt 3 Equipped MacBook Pro (2016) and EIZO Monitor Compatibility
April 14, 2020 Lenovo ThinkStation P330 SFF, P330 Tiny, P520c, ThinkPad P53, P53 (Thunderbolt 3 Dock) and FlexScan, RadiForce Compatibility
July 30, 2019 Abnormal Display Issue on Microsoft Windows 10 May 2019 Update (1903)
January 23, 2019 A USB signal transmission error may occur between some PCs and EIZO monitors when using EIZO software.
November 29, 2018 HP Z2 Mini G4 Workstation and RadiForce Compatibility
November 15, 2018 HP Z2 Tower G4, Z2 SFF G4 Workstation and RadiForce Compatibility
September 20, 2018 DELL T5820, T7820 and RadiForce Compatibility
March 15, 2018 HP Z240SFF, Z240, Z4 G4, Z6 G4, Z8 G4 Workstation and RadiForce Compatibility

Technical Information

November 22, 2017 The Advantages of Hybrid Gamma PXL [PDF]

This document shows the results of a study conducted by the Federation of National Public Service Personnel Mutual Aid Association of Kumamoto Chuo Hospital comparing the interpretation accuracy of color and monochrome images when the Hybrid Gamma PXL function is turned on or off.
