ColorEdge CS2731
27.0" Color Management LCD Monitor
Streamline your creative workspace and nurture your boundless imagination.
Leave cable clutter and connectivity issues behind with this USB Type-C® equipped color management monitor. With single cable connection and 60 W power delivery, it provides convenience and a streamlined workspace so you can focus your creative energy where it matters most.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories
  • Awards & Reviews

Case Studies

prev next



Reference Materials for Furthering Your Creativity

Learn about color management, software and printer settings for optimal screen-to-print matching, and more with free digital resources from EIZO.
Reference Materials for Furthering Your Creativity



Single Cable Connection with USB Type-C

The CS2731 is the first in the ColorEdge lineup to feature USB Type-C connectivity with 60 W power delivery. With a single USB Type-C cable you can display video, transmit USB signals, and supply power to a connected device such as a smartphone or notebook PC. Simply plug in and get creative without worrying about additional cable clutter.
Single Cable Connection with USB Type-C




60 W Power Delivery

The USB Type-C terminal supplies up to 60 W of power, so even high-end notebook PCs stay charged while working. This frees your creative workspace of an additional external AC adapter.

60 W Power Delivery

USB Type-C Equipped Devices and ColorEdge CS2731 Compatibility [PDF]

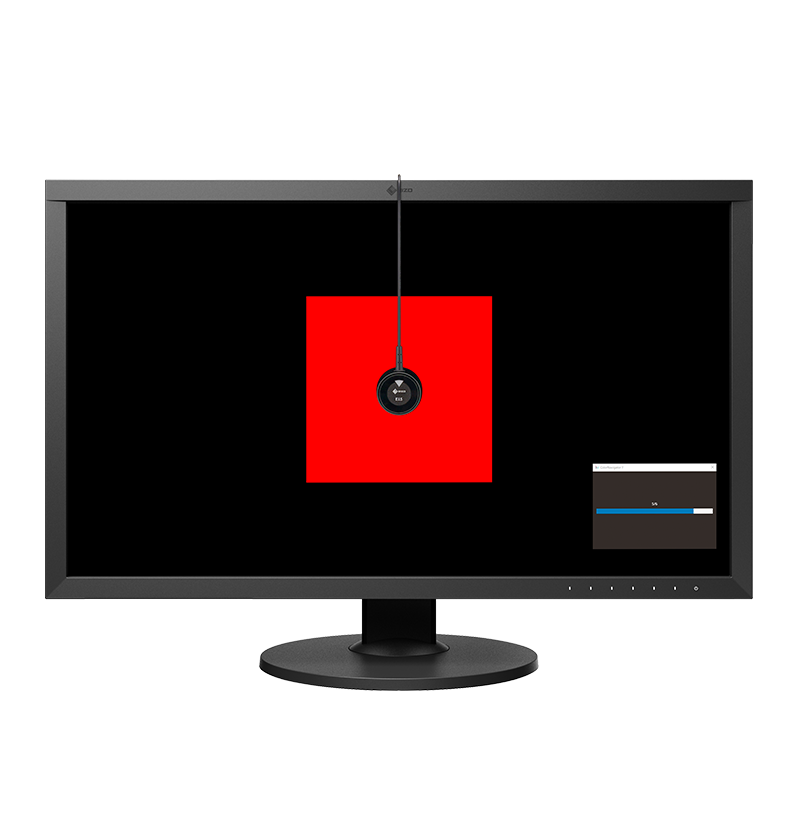

Simple and Precise Color Management

ColorNavigator 7 Software

ColorNavigator 7 is the latest calibration and quality control software for ColorEdge color management monitors. It combines all the features of EIZO's previous color management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields. The proprietary software performs hardware calibration by directly utilizing the LUT (look-up-table) of the monitor for higher precision and better gradation characteristics compared to software calibration.

More about ColorNavigator

CS2731 CN7

Quick Color Match Software

Even with all the right equipment, color matching can be a tedious process - from monitor adjustment to determining the best retouch software and printer settings - achieving an accurate print takes a great deal of time. Quick Color Match greatly simplifies the process by automatically adjusting to the ideal monitor, retouching software, and printer settings so you can focus on editing your photos and print your work quickly and hassle-free. Simply drag and drop your photo in the Quick Color Match window to automatically start the process.

More about Quick Color Match

Quick Color Match Software


Page Top

Color Accuracy

Vivid Colors Reproduced to Industry Standards

The wide color gamut reproduces almost the entire Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully in a  way that monitors limited to an sRGB color space cannot display. The wide color gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK color spaces used in printing.

Vivid Colors Reproduced to Industry Standards



10-Bit Simultaneous Display

Using the DisplayPort or HDMI® inputs, the monitor offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.

10-Bit Simultaneous Display


*A graphics board and software which support 10-bit output are also necessary for 10-bit display. Equipment that supports DeepColor is required for 10-bit display when connected via HDMI.


Page Top

Stable Image Display

Adjusted at the Factory for Smooth Color Gradations

The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.

Adjusted at the Factory for Smooth Color Gradations


Uniformity Across the Screen

LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting color accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.

Uniformity Across the Screen

Page Top


User-Friendly Design

Seamless Electrostatic Switches

The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to monitor setting.

Seamless Electrostatic Switches

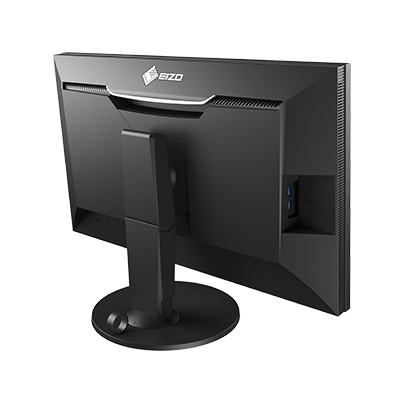

Built-In Carrying Handle

A carrying handle on the back of the monitor allows you to easily move it from one location to another.



Page Top


Comfort and Ease-of-Use

Ample Screen Size for Creative Work

The spacious 27-inch screen has a native resolution of 2560 x 1440, which offers a pixel count of double that of 1280 x 1024 and 60% more than 1920 x 1200 resolutions. This gives creatives ample space to work with images, toolbars and palettes, panels, and other windows.

Ample Screen Size for Creative Work

Minimized Reflections with Non-Glare Panel

The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.

Minimized Reflections with Non-Glare Panel

I/P Conversion for Flicker-Free Display

The HDMI input supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.

I/P Conversion for Flicker-Free Display

Wide Viewing Angles with IPS Panel

The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast.

Optional Light-Shielding Hood

An optional light-shielding hood is available that effectively prevents glare on the monitor's screen caused by ambient lighting. The hood attaches to the monitor magnetically, allowing users to setup quickly and easily without needing to connect separate parts.

Optional Light-Shielding Hood

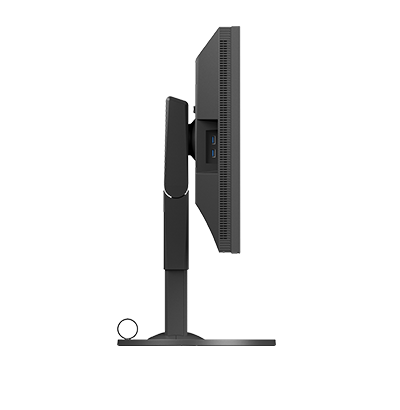

Ergonomic Stand for Comfort and Convenience

Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait display. The stand is also equipped with a quick release that allows you to easily remove the screen from the stand with one touch.
Optional Light-Shielding Hood



Multiple Inputs

The ColorEdge CS2731 is equipped with HDMI, DisplayPort, and DVI-D inputs. In addition to USB Type-C, it also has a USB Type-B and four USB Type-A ports.


Multiple Inputs


Page Top



Sustainable Future


Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Higher Work Efficiency
ColorEdge hardware and software solutions provide high-precision color management to photographers, designers, post production studios, printers, and more. Implementing color management in the workflow ensures the same color information is shared throughout each step of the creative process, streamlining communication between artists and teams, and reducing costly rework.

SDGs 08

Environmentally Conscious
Our products for creative work are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12



Page Top

Commitment to Quality

5-Year Warranty

ColorEdge monitors are backed by a manufacturer's 5-year warranty that covers all components including the LCD panel*. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.

*Usage time is limited to 30,000 hours.

5 Year Warranty

Zero Bright Pixels

EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.

See our Bright Pixel Policy for details.

Zero Bright Pixels



Page Top

Used by Professional Creatives Worldwide

In 2015, EIZO established the ColorEdge Ambassador Program which showcases professional photographers, designers, filmmakers, and other creatives who are committed to inspiring and educating artists around the world. EIZO's Ambassadors – all of them ColorEdge users – are passionately dedicated to their craft and prepare the best equipment for realizing their creative vision.

To see our ColorEdge Ambassadors, click here.
ambassadors

Model Variations CS2731-BK
Panel
Type IPS
Backlight Wide-Gamut LED
Size 27.0" (68.5 cm)
Native Resolution 2560 x 1440 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.7 x 335.7 mm
Pixel Pitch (H x V) 0.233 x 0.233 mm
Pixel Density 109 ppi
Display Colors USB Type-C, DisplayPort, HDMI: 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT)
DVI: 16.77 million colors, 8-bit display (from a palette of 278 trillion, 16-bit LUT)
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 10 ms (gray-to-gray)
Color Gamut (typical) Adobe RGB: 99%
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4), DVI-D (HDCP 1.4)
Digital Scanning Frequency (H / V) USB Type-C, DisplayPort, DVI: 26 - 89 kHz, 23 - 61 Hz
HDMI: 15 - 89 kHz, 23 - 61 Hz
USB
Upstream USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 60 W max.), USB 5Gbps: Type-B
Downstream USB 5Gbps: Type-A x 2
USB 2.0: Type-A x 2
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 34 W
Maximum Power Consumption 159 W
Power Save Mode 1.0 W or less
Features & Functions
Digital Uniformity Equalizer Yes
Preset Modes User, Adobe RGB, sRGB, Calibration
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Color Adjustment, Input Color Format, YUV Color Matrix, Input Range, Noise Reduction, I/P Conversion, Picture Expansion, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority
Physical Specifications
Dimensions (Landscape, W x H x D) 638 x 404.1 - 559.1 x 265 mm
Dimensions (Without Stand, W x H x D) 638 x 378.2 x 75 mm
Net Weight 10.1 kg
Net Weight (Without Stand) 6.5 kg
Height Adjustment Range 155 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 0 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics
Dedicated Software
Easy Screen-to-Print Color Matching Tool Quick Color Match Supported
Proprietary Software
Color Management Software ColorNavigator 7 Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (2 m), HDMI (2 m)
Others AC power cord, USB Type-A - USB Type-B cable (2 m), Setup guide, Warranty card, VESA mounting screw x 4
Warranty 5 Years 2 5
Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Brochures

ColorEdge Series
5.51 MB

Download



Color Management Handbook Version 5
4.93 MB

Download



Manuals

Languages

CS2731 User's manual English 3.69 MB PDF
EX5 User's manual English
Chinese-Simplified
- HTML
CS2731 User's manual German 3.72 MB PDF
CS2731 User's manual French 3.75 MB PDF
CS2731 User's manual Russian 3.74 MB PDF
CS2731 User's manual Czech 3.98 MB PDF
CS2731 User's manual Chinese-Simplified 4.16 MB PDF
CS2731 User's manual Chinese-Traditional 4.17 MB PDF
CS2731 Setup guide English
German
French
Russian
Chinese-Simplified
Chinese-Traditional
2.92 MB PDF
Quick Color Match User's manual English 15.9 MB PDF
ColorNavigator 7 User's manual English 4.84 MB PDF
Quick Color Match User's manual German 15.7 MB PDF
ColorNavigator 7 User's manual German 4.95 MB PDF
ColorNavigator 7 User's manual Chinese-Simplified 5.24 MB PDF
ColorNavigator 7 Advanced Photo Printing Instructions English 4.32 MB PDF
EX4 User's manual English 571 KB PDF
CS2740 / CS2731 / CS2410 LIMITED WARRANTY English
German
French
Russian
Chinese-Simplified
Chinese-Traditional
631 KB PDF
