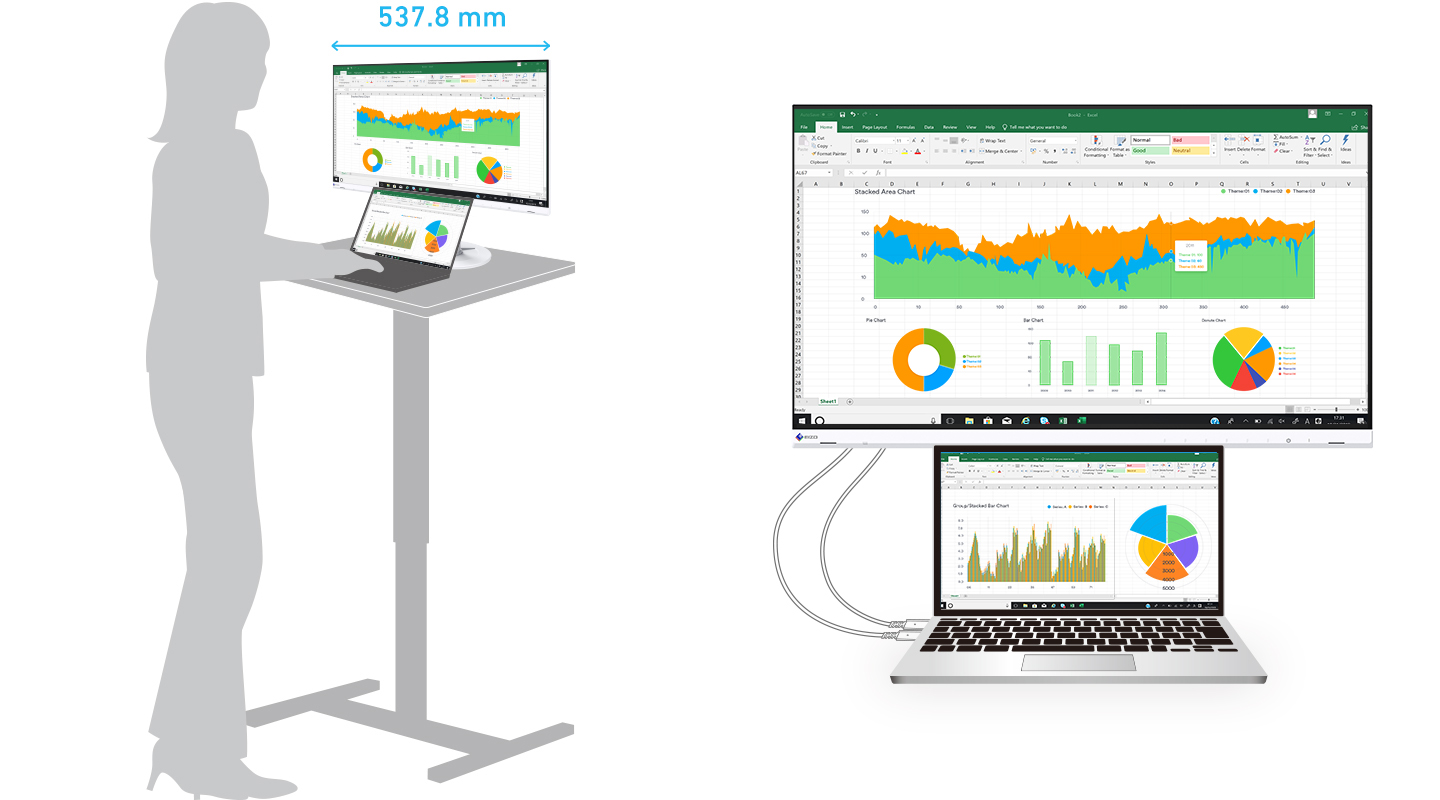

High Resolution in a Space-Saving Design
The EV2460 uses a 23.8-inch IPS panel with full HD (1920 x 1080) resolution. The small-footprint monitor has a width of just 537.8 mm for saving desk space. Furthermore,140 mm height adjustment allows you to easily place a laptop under the monitor to realize a convenient dual-screen environment.
Lower Impact on the Environment
1. Relief for Your Eyes and the Environment
The EV2460 implements EIZO's proprietary EcoView technologies, which cut power consumption by as much as 40% compared to displaying at maximum brightness and help to eliminate eyestrain when viewing the monitor for long periods.
- Auto EcoView: Automatically adjusts the screen’s brightness according to changes in the ambient lighting
- EcoView Optimizer 2: Fine-tunes the balance between brightness and gain according to the content displayed on the screen.
Furthermore, as part of its efforts to maintain environmentally responsible manufacturing, EIZO developed the monitor without flame retardant in the plastic body to improve recyclability. EIZO also uses recyclable packing for the boxes the monitor is shipped in.
Optimized for Hot Desking
1. Take Your Settings with You
EIZO's Screen InStyle proprietary software's Color Briefcase allows you to effortlessly maintain your individual screen preferences and take them with you, even to different monitors. Your settings are automatically reflected simply by connecting your laptop to a monitor supported by Screen InStyle. This is useful in environments with hot-desking or shared workspaces, providing enhanced comfort and work efficiency.
2. The Perfect Position
|
The stand features wide range height adjustment, tilt, and swivel, while saving space and remaining stylish. You can adjust your monitor to the perfect position with ease. |
|
3. Refreshing White with Frameless Design
The EV2460 comes with a white cabinet option with matching cables. Compared to black, white monitors offer a refreshing change that brightens the office with style. The frameless design further sophisticates the look.
Say Goodbye to Tired Eyes
The EV2460 is equipped with functions to help prevent eye fatigue, so you can concentrate on work throughout the day without tiring.
Auto Brightness Control
To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.
Reduce Blue Light by 80%
In the visible light spectrum, blue light has wavelengths adjacent to ultraviolet light. Compared to the factory preset setting of 6500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents. When used in conjunction with Auto EcoView dimming function, blue light can be reduced by as much as 80%.

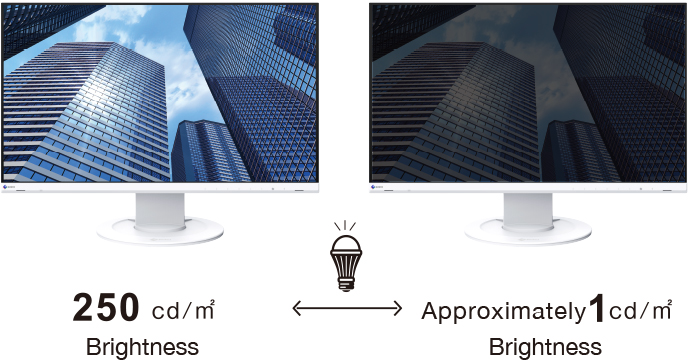

Minimum Brightness of Approximately 1 cd/m2
In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.

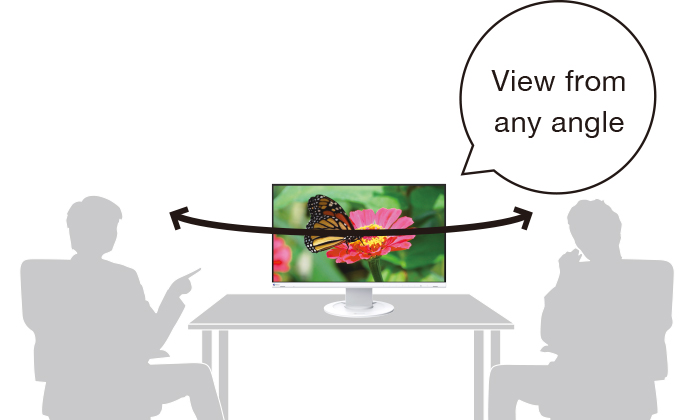

Clear View from All Angles
The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV2460 utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.
Anti-Glare Coating
The EV2460 is treated with an anti-glare coating to reduce screen reflections caused by ambient lighting. The coating scatters incoming light, reducing the amount of light reflected into your eyes.
|
|
|
Additional Convenience
Connectivity on the Side and Back
The monitor is equipped with three input terminals: DisplayPort, HDMI® and D-Sub. Two USB Type-A ports and a headphone jack are also installed for convenient connection with peripheral devices.
Free Up Your Workspace with a Stand Bracket
The PCSK-03R is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely.
Care for the Environment and You
Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.
5-Year Warranty
A manufacturer’s 5-year warranty covers all components including the LCD panel* to ensure a long service life. This warranty is 2 years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.
* Usage time is limited to 30,000 hours.
Zero Bright Pixels
EIZO guarantees this product will be free from bright sub-pixels for six months.
See our Bright Pixel Policy for details.
Rest Assured with Major Sustainability Standards
| The monitor is certified by worldwide comprehensive sustainability standards including TCO Certified Generation 9 and EnergyStar. Furthermore, the monitor is registered at EPEAT Silver, indicating that it meets the most demanding set of criteria for sustainability, and has attained the new EPEAT Climate+ designation for compliance with climate change standards. Organizations concerned with ESG (environmental, social, and governance) investments or SDGs can assuredly procure the monitor to meet required guidelines. |

|
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system. |
   |
|
|
Higher Work Efficiency FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue. |
 |
| Model Variations |
EV2460-BK: with FlexStand, black
EV2460-WT: with FlexStand, white EV2460-FBK: without stand, black EV2460-FWT: without stand, white Note: FlexStand is removable |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 23.8" (60.5 cm) |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 527 x 296.5 mm |
| Pixel Pitch (H x V) | 0.275 x 0.275 mm |
| Pixel Density | 93 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 250 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 5 ms (gray-to-gray) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), DVI-D (HDCP 1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) |
DisplayPort: 31 - 68 kHz / 59 - 61 Hz
HDMI: 15 - 68 kHz / 49 - 51, 59 - 61 Hz DVI: 31 - 68 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 68 kHz / 59 - 61 Hz |
| Sync Formats | Separate |
| USB | |
| Upstream | USB 5Gbps: Type-B |
| Downstream | USB 5Gbps: Type-A x 4 |
| Audio | |
| Speakers | 1.0 W + 1.0 W |
| Input Terminals | Stereo mini jack, DisplayPort, HDMI |
| Output Terminals | Headphones (Stereo mini jack) |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 10 W |
| Maximum Power Consumption | 50 W |
| Power Save Mode | 0.5 W or less |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Paper, Movie, DICOM |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 537.8 x 333.6 - 473.6 x 233 mm |
| Dimensions (Without Stand, W x H x D) | 537.8 x 320.4 x 53.6 mm |
| Net Weight | 5.9 kg |
| Net Weight (Without Stand) | 3.8 kg |
| Height Adjustment Range | 140 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° (both clockwise and counter clockwise) |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | TCO Certified Generation 9, EPEAT Silver with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EAC |
| Dedicated Software | |
| Monitor Control Utility Screen InStyle | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DisplayPort (2 m) |
| Others | AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), setup guide |
| Warranty |
5 Years
Zero bright sub-pixels for six months from date of purchase. |
| Dimension Drawing |
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
- 16 EPEAT registration varies by country. Please check https://www.epeat.net for registration status.
Brochures
 |
FlexScan Series 2024
|
|
|
FlexScan EV2460
|
Manuals
| EV2460 User's manual | English | 2.19 MB |
|
| EV2460 User's manual | German | 2.2 MB |
|
| EV2460 User's manual | French | 2.25 MB |
|
| EV2460 User's manual | Russian | 2.22 MB |
|
| EV2460 User's manual | Czech | 2.29 MB |
|
| EV2460 User's manual | Chinese-Simplified | 2.72 MB |
|
| EV2460 User's manual | Chinese-Traditional | 2.78 MB |
|
| EV2460 Setup guide | English German French Russian |
6.66 MB |
|
| EV2460 Setup guide | Chinese-Simplified | 2.28 MB |
|
| EV2460 Setup guide | Chinese-Traditional | 2.28 MB |
|
| Screen InStyle Server User's manual | English | 355 KB |
|
| Screen InStyle Installation Guide | English | 200 KB |
|
| LIMITED WARRANTY | English German French Russian Chinese-Simplified Chinese-Traditional |
630 KB |
|
