Product Name
23.8" (60.5 cm) LCD monitor
The New Standard
for a Better Working Experience
The 23.8-Inch EV2480 is a frameless Full HD (1920 x 1080 pixel) monitor equipped with USB Type-C for improving productivity and comfort at the office or at home.
  • Contact EIZO
  • AR Visualization
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Streamlined Connection with USB Type-C

The monitor is equipped with a USB Type-C connection that allows users to display video, playback audio, transmit USB signals, and supply power to connected devices. This convenient multi-purpose connectivity makes it faster and easier to connect a laptop when moving between workstations or when working away from the office.

Streamlined Connection with USB Type-C

Guide to Efficient Telecommuting

Read how an external monitor helps improve efficiency



70 Watt Power Delivery

The 70 watt power delivery via USB Type-C reliably charges small desktop PCs and laptops. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.

70 Watt Power Delivery




Connect Peripherals Directly Into the Monitor

While modern laptops are becoming thinner and more portable, they often have limited connectivity options for peripherals. Connecting to the monitor via USB Type-C gives access to a hub with four USB Type-A ports for easily connecting an external keyboard, mouse, web camera, or storage device.

Connect Peripherals Directly Into the Monitor



USB Type-C equipped PCs Compatibility information  compatibility.jpg





A Better Working Experience

The monitor offers features and functions that enhance efficiency, productivity, and comfort.

A Better Working Experience

For the Workplace

Versatile Stand for Optimal Positioning

The stand has a wide adjustment range, featuring height adjustment, tilt and swivel. This allows you to set the monitor to the perfect position, whether sitting or standing at your desk.

Versatile Stand for Optimal Positioning

Versatile Stand for Optimal Positioning

For the Home Office

Improve Work Efficiency

At maximum stand height, the user can comfortably place a small laptop under the 23.8-inch screen to save space in even the most limited workspaces. This effectively increases the available screen space by as much as triple, greatly improving efficiency by reducing the need to scroll or switch windows frequently.

Improve Work Efficiency



Connectivity and Flexibility

The monitor is equipped with USB Type-C, DisplayPort, and HDMI video inputs for flexible connection in different work environments.

Connectivity and Flexibility



Comfortably Fits in Modest Workspaces

The monitor’s width of 537.8 mm and its shallow depth of 230 mm makes it compact enough to fit comfortably in shared workspaces or smaller home offices.


Comfortably Fits in Modest Workspaces



Take Your Settings with You

EIZO's Screen InStyle software's Color Briefcase function allows you to effortlessly maintain your individual screen preferences and take them with you, even to different monitors. This streamlines the setup and connection process for flexible workstyles, as well as enhanced comfort when telecommuting.

 Learn more about Screen InStyle


Take Your Settings with You



Portrait Mode for Vertical Viewing

The versatile stand allows you to rotate the monitor to portrait mode for reading long text documents or vertically optimized webpages and applications.


Portrait Mode for Vertical Viewing






Aesthetically Pleasing Design

A monitor's aesthetic can go a long way in creating a more comfortable atmosphere. The monitor's minimalistic design and its ergonomic functions allow it to fit naturally in your work environment, whether you are at home or in the office.



Aesthetically Pleasing Design

Bezels that are Barely There

The monitor implements a virtually frameless design for a minimalistic aesthetic. There is very little distance between the display area and the bezels, making the monitor easy to blend in with the environment.



Bezels that are Barely There

Color Coordination

In addition to sleek black, the cabinet is available in white for a color option that keeps your workspace feeling bright. Furthermore, EIZO provides white cables to match the cabinet for full color coordination.



Color Coordination





Tap below to see how EIZO fits into your workspace with augmented reality.

Support Models: iPhone 6s, iPad (5th generation) or later
Supported Browsers: Safari, Chrome

Scan the QR code using your iPhone or iPad
to see how EIZO fits into your workspace with augmented reality.

Support Models: iPhone 6s, iPad (5th generation) or later
Supported Browsers: Safari, Chrome



Free Up Your Workspace with a Stand Bracket

PCSH-03The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. You can adjust the monitor's stand freely even with the client terminal attached.

 Learn more about Stand Bracket



Free Up Your Workspace with a Stand Bracket




Say Goodbye to Tired Eyes

The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.

Say Goodbye to Tired Eyes

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.



Auto Brightness Control

Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Clear View from All Angles

Reduce Blue Light by 80%

Printing work-related documents is becoming less common due to the increase in home offices, telecommuting, and stricter security measures. Paper Mode reduces the amount of blue light emitted by the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function, blue light is reduced by as much as 80%.


Reduce Blue Light by 80%

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

Flicker-Free Viewing

Minimum Brightness of 1 cd/m2

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.

Minimum Brightness of Approximately 1 cd/m2

Glare Reduction

The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient lightning. This makes the screen easier to see and helps reduce eye fatigue.


Anti-Glare Coating

Certified for Eye Care

FlexScan monitors are certified by TÜV Rheinland to have low blue light and be flicker-free.

Read more about how to combat eye fatigue.



tuvrheinland logo







Commitment to Quality

EIZO manufacturers its products at its own facilities to allow close control over production quality and ensure each monitor is built to last.
Commitment to Quality

5-Year Warranty

FlexScan monitors are backed by a standard 5-year manufacturer's  warranty that covers all components, including the LCD panel*. This extensive warranty period is two years longer than the standard warranty of most conventional monitors. EIZO's 5-year manufacturer's warranty contributes to significantly lower product life cycle costs.
* Usage time is limited to 30,000 hours.





Zero Bright Pixels

EIZO guarantees its FlexScan monitors will be free from bright sub-pixels for six months from the date of purchase.
See our Bright Pixel Policy for details.
  Zero bright policy

Exceptional Image Reproduction

The monitor converts the data from an 8-bit input signal and selects the optimal gradations for smooth image display. Furthermore, each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.


Refreshing White with Frameless Design Refreshing White with Frameless Design

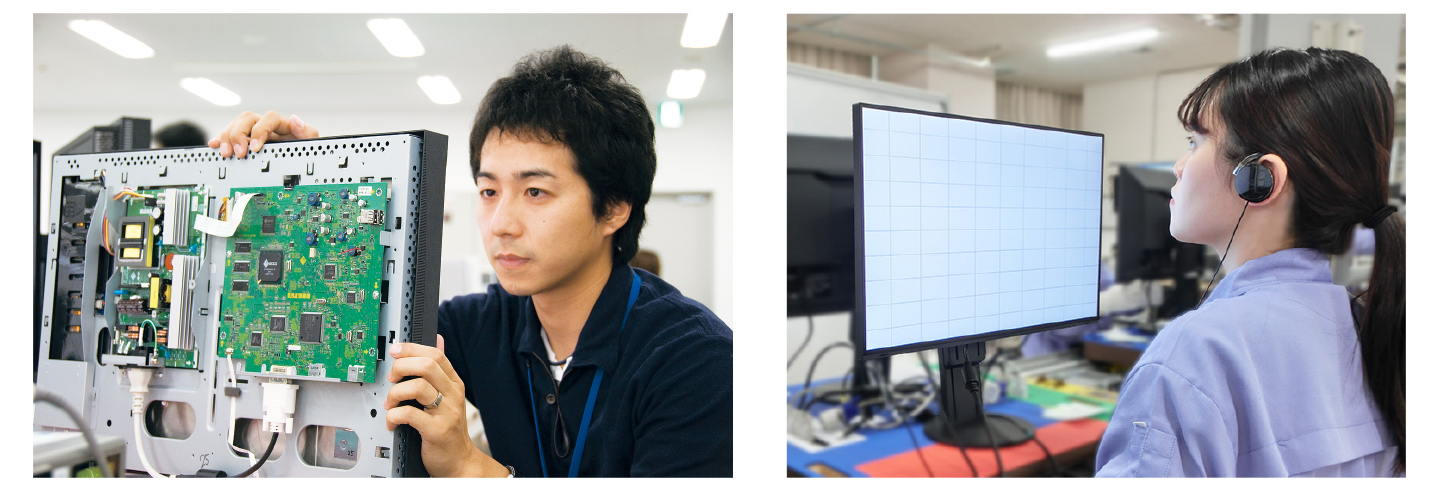

Integrated Approach

Each FlexScan monitor is developed, manufactured, and quality-control tested in-house at EIZO's own factory to ensure every product is built to last.
Learn more about how a FlexScan is made.

Auto Brightness Control




Care for the Environment and You

The monitor's energy-saving and power reduction functions make it both easy on the eyes and environmentally friendly. EIZO is working towards creating environmentally friendly products through a wide range of corporate efforts.

Care for the Environment and You

A Natural Beauty

Reducing the use of volatile organic compounds (VOCs) found in material production, such as some paints, is a global concern. EIZO uses its expertise cultivated from extensive years of research to manufacture its monitor cabinets with a smooth, uniform color and texture without using paint.

A Natural Beauty



Reduced Power Consumption

The monitor implements EIZO's proprietary EcoView technologies which cut power consumption up to 50%* compared to displaying at maximum brightness.

*Typical power consumption when not using USB power delivery.

  • Auto EcoView: Automatically adjusts the screen’s brightness according to changes in the ambient lighting.
  • EcoView Optimizer 2: Fine-tunes the balance between brightness and gain according to the content displayed on the screen.

Reduced Power Consumption


Eco-Friendly Packing Customization

EIZO offers corporate customers an option for collective packing, where multiple monitors can be packed together in a single box. This lowers environmental impact by reducing packing materials used for a single shipment.

Eco-Friendly Packing Customization


Rest Assured with Major Sustainability Standards

The monitor is certified by major comprehensive sustainability standards such as TCO Certified Generation 8, EPEAT, and EnergyStar. Organizations concerned with ESG (environmental, social, and governance) investments or SDGs can assuredly procure the monitor to meet required guidelines.   Refreshing White with Frameless DesignRefreshing White with Frameless DesignRefreshing White with Frameless Design


Our Contribution to SDGs

As part of its corporate social responsibility (CSR) activities, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).

SDGs Logo


Environmentally Friendly

FlexScan are environmentally friendly monitors that are built with continually improved energy efficiency, made using recycled plastics and sustainable procured materials, boxed in recyclable packaging, and supported by a responsible after-service recycling system.

Learn more


Higher Work Efficiency

FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

Learn more


EIZO's Integrated Report: ESGs, initiatives, strategies, and more.

Model Variations EV2480-BK: with FlexStand, black
EV2480-WT: with FlexStand, white
EV2480-FBK: without stand, black
EV2480-FWT: without stand, white

Note: FlexStand is removable
Panel
Type IPS
Backlight LED
Size 23.8" / 60.5 cm
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 527 x 296.5 mm
Pixel Pitch 0.275 x 0.275 mm
Pixel Density 93 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 250 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (HDCP 1.4)
Digital Scanning Frequency (H / V) USB Type-C: 31 - 68 kHz / 59 - 61 Hz
DisplayPort: 31 - 68 kHz / 59 - 61 Hz
HDMI: 31 - 68 kHz / 49 - 51 Hz, 59 - 61 Hz
USB
Upstream USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.)
Downstream USB 3.1 Gen 1: Type-A x 4
Audio
Speakers 1.0 W + 1.0 W
Input Terminals USB Type-C, DisplayPort, HDMI
Output Terminals Headphones (Stereo mini jack)
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 11 W
Maximum Power Consumption 142 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes User1, User2, sRGB, Paper, Movie, DICOM
Auto EcoView Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 537.8 x 332.4 - 523.6 x 230 mm
Dimensions (Without Stand, W x H x D) 537.8 x 320.4 x 57.4 mm
Net Weight 7.4 kg
Net Weight (Without Stand) 4.7 kg
Height Adjustment Range 191.2 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90° (both clockwise and counter clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) TCO Certified Generation 8, EPEAT 2018 (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, China Energy Label Grade1, EAC
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (2 m)
Others AC power cord (2 m), setup guide
Warranty Five Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Brochures

NEW
FlexScan Series 2021
10.9 MB

Download



Manuals

Languages

Document Language Size Download
EV2480 User's manual English 1.89 MB Download
EV2480 Setup guide English
Chinese-Simplified
Chinese-Traditional
French
German
Russian
1.33 MB Download
EV2480 User's manual Chinese-Simplified 2.43 MB Download
EV2480 User's manual Chinese-Traditional 2.51 MB Download
EV2480 User's manual French 1.95 MB Download
EV2480 User's manual German 1.91 MB Download
EV2480 User's manual Russian 1.93 MB Download

Compatibility

Date Subject
December 15, 2020 USB Type-C Equipped PCs and FlexScan Compatibility
December 10, 2020 Apple M1 Chip Equipped Mac Computer and EIZO Monitor Compatibility
