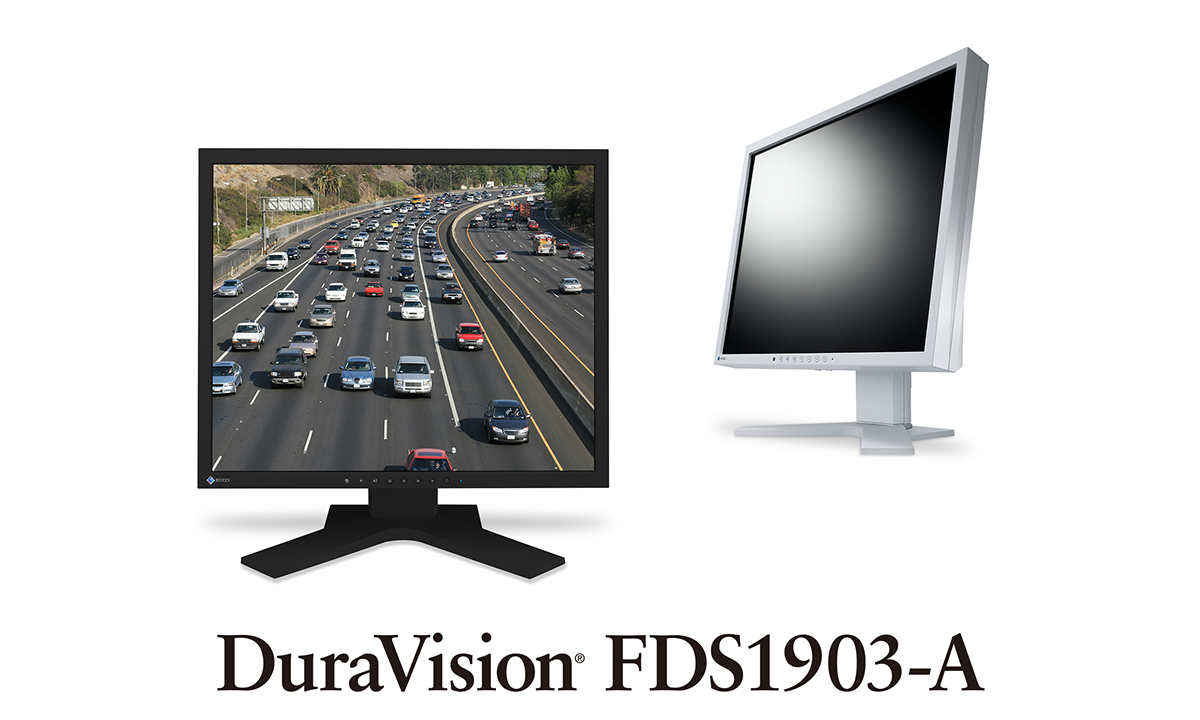

FDS1903-A
19.0" Color LCD Monitor
The DuraVision FDS1903-A is a 1280 x 1024 resolution monitor equipped with both analog and digital inputs for connecting to a wide range of security equipment.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

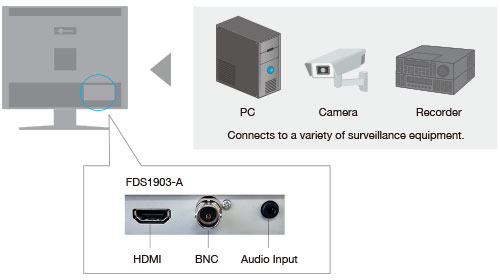

Analog and Digital Input

The DuraVision FDS1903-A is equipped with an HDMI® connector for receiving signals from a digital source, such as an HDD recorder. It also has a composite (BNC) input for connection to video surveillance equipment, such as closed-circuit televisions (CCTV) and security cameras. The monitor supports NTSC, PAL, and SECAM signals for connecting to a variety of other surveillance equipment.

Analog and Digital Input


Flexible Screen Display

The monitor can accept a full HD (1920 x 1080) signal via HDMI and display at its native resolution of 1280 x 1024. Multiple screen setting options are available for analog or digital signals that allow operators to display images to fit to the screen, stretch to fill, or enlarge while maintaining aspect ratio.

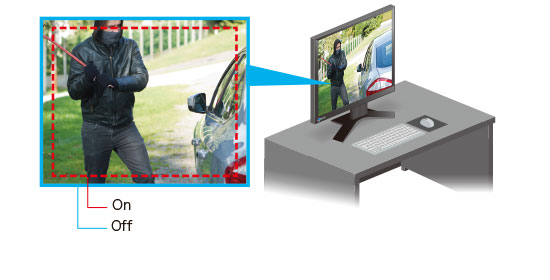

Underscan and Overscan Display Functions

Underscan is a function that shows 100% of an image and is ideal for video signals while overscan displays approximately 95% of an image, eliminating extraneous TV broadcasting data that sometimes appears at the edges of the screen.

Underscan and Overscan Display Functions

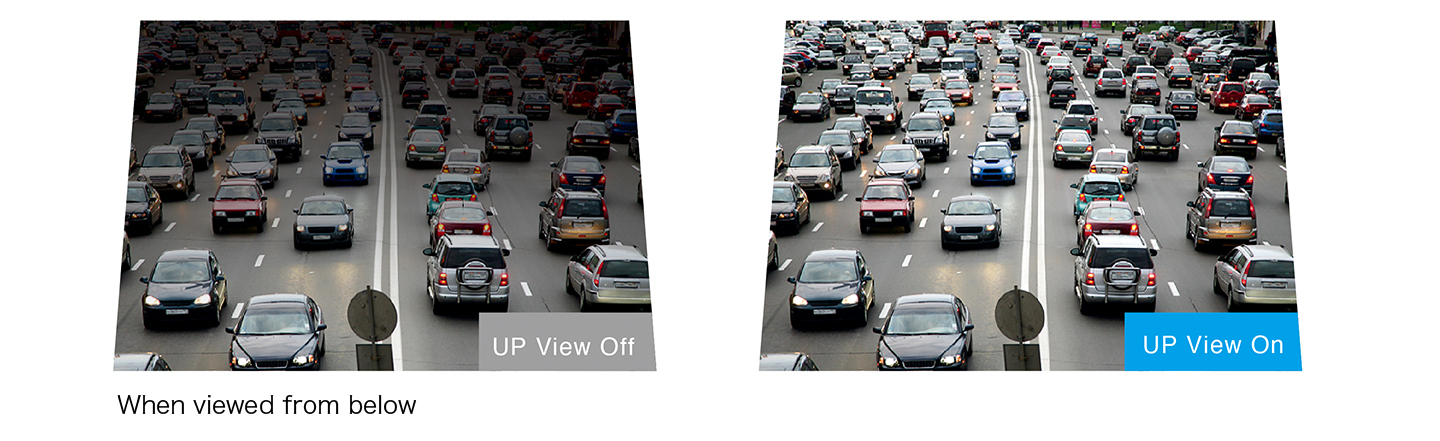

Clear View from Below

When viewing an LCD screen from below, colors typically appear washed out. The DuraVision FDS1903-A includes an Up View function which minimizes color wash-out for maintaining a clear view. This is ideal for environments where the monitor is installed above eye level.

Clear View from Below


Reduced Noise and Flicker

A 3D Y/C separation circuit is built in and separates the brightness signal from the color information. This effectively reduces color flickering and noise that is typically characteristic of analog signals.



Built-In Stereo Speakers

The DuraVision FDS1903-A comes equipped with built-in 0.5 W + 0.5 W stereo speakers for environments that require sound output from the monitor.



24-Hour Use, 2-Year Warranty

The monitor is built for 24-hour use and is backed by a 2-year manufacturer's warranty for long-term reliability.



Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Industry, Innovation, and Infrastructure
DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services.

SDGs 09

Environmentally Conscious
Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12
Model Variations FDS1903-ABK: with stand, black
FDS1903-AGY: with stand, gray
FDS1903-AFBK: without stand, black
FDS1903-AFGY: without stand, gray
Panel
Type TN
Backlight LED
Size 19.0" (48.2 cm)
Native Resolution 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V) 376.3 x 301.1 mm
Pixel Pitch (H x V) 0.294 x 0.294 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 170° / 160°
Brightness (typical) 325 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 10 ms (black-white-black)
Video Signals
Input Terminals HDMI (HDCP1.4), BNC (Composite)
Digital Scanning Frequency (H / V) 15 - 68 kHz / 50 - 61 Hz
Video Input Format NTSC, PAL, SECAM
Audio
Speakers 0.5 W + 0.5 W
Input Terminals Stereo mini jack
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption 23 W
Power Save Mode 2.5 W or less
Features & Functions
Others Color Adjustment (Brightness, Contrast, Temperature, Gamma, Saturation, Hue, Gain, Reset), Screen Size, Input Color Format, Input Range, Noize Reduction, Sharpness, Over Scan, Up View, Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), Adjustment Lock, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 405 x 406.5 - 506.5 x 205 mm
Dimensions (Without Stand, W x H x D) 405 x 334 x 61.5 mm
Net Weight 5.9 kg
Net Weight (Without Stand) 4.1 kg
Height Adjustment Range 100 mm
Tilt 30° Up, 0° Down
Swivel 70°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm, M4, screw depth 3.5 - 10.4 mm
Environmental Requirements
Operating Temperature 0 - 40°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) CE, UKCA, CB, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Others FDS1903-A: User's manual, Connector Clamp

FDS1903-AF: User's manual, VESA mounting screw (M4 x 12 mm) x 4, Connector Clamp
Warranty 2 Years (24-hour use)
Dimension Drawing PDF

Manuals

Languages

FDS1903-A User's manual English 3.22 MB PDF
FDS1903-A User's manual French 3.24 MB PDF
