Flexible Installation
To meet the requirements of different industrial installations, the monitor is available in four configurations – desktop, VESA mount, panel mount, and chassis.
High Brightness for Visibility
The maximum brightness of 600 cd/m2 ensures excellent screen visibility in bright ambient environments. The brightness is adjustable to as low as 0.5 cd/m2, making it easy to view in low ambient lighting conditions.
Durable Build
The monitor can withstand temperatures ranging from 0 - 50°C for high durability in industrial environments. In addition, the cabinet does not contain any ventilation holes and the perimeter of the control buttons are sealed, making it impervious to liquids and dust.
Flexible Positioning
The monitor is built to operate in both standard horizontal positions and non-standard positions such as attached to a mounting device or tilted at an extreme angle. In addition, images can be viewed rotated at 180° using a function accessed via the monitor’s front buttons for viewing flexibility.
Model Variations |

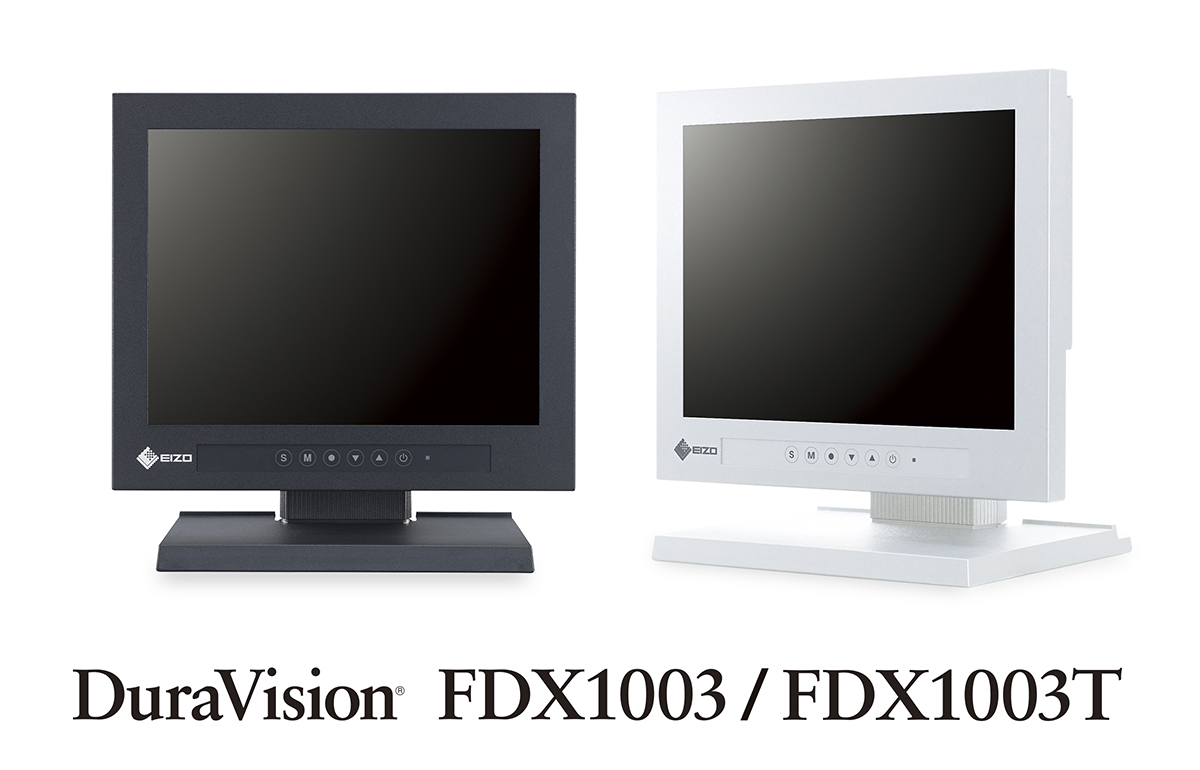

FDX1003-BK: with stand, black
FDX1003-GY: with stand, gray FDX1003-FBK: without stand, black FDX1003-FGY: without stand, gray FDX1003-PBK: Panel Mount, black FDX1003-C: Chassis Mount |
---|---|
Panel | |
Type | TN |
Backlight | LED |
Size | 10.4" (26 cm) |
Native Resolution | 1024 x 768 (4:3 aspect ratio) |
Viewable Image Size (H x V) | 210.4 x 157.8 mm |
Pixel Pitch | 0.206 x 0.206 mm |
Display Colors | 16.77 million |
Viewing Angles (H / V, typical) | 160° / 130° |
Brightness (typical) |
FDX1003, FDX1003-F, FDX1003-C:
600 cd/m2 FDX1003-P: 550 cd/m2 |
Contrast Ratio (typical) | 700:1 |
Response Time (typical) | 16 ms (black-white-black) |
Video Signals | |
Input Terminals | DVI-D (HDCP1.4), D-Sub mini 15 pin |
Digital Scanning Frequency (H / V) | 31 - 49 kHz / 59 - 61 Hz |
Analog Scanning Frequency (H / V) | 24 - 61 kHz / 55 - 76 Hz |
Sync Formats | Separate |
Power | |
Power Input |
Monitor: DC 12 V AC Adapter: AC 100 - 240 V, 50 / 60 Hz |
Maximum Power Consumption |
DC: 9 W AC: 10 W |
Features & Functions | |
Preset Modes | User1, User2, sRGB |
OSD Languages | English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish |
Others | Screen Adjustment (Clock, Phase, Position, Range (Auto), Smoothing (5 stages), Color Adjustment (Brightness, Temperature, Gain, Saturartion, Hue, Reset, Color Mode), Signal Switching, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), Reverse, Reset |
Physical Specifications | |
Dimensions (Landscape, W x H x D) | 252 x 255 x 175 mm |
Dimensions (Without Stand, W x H x D) | 252 x 216 x 45 mm |
Dimensions (Panel Mount, W x H x D) | 283 x 248 x 45 mm |
Dimensions (Chassis, W x H x D) | 272 x 215 x 45 mm |
Net Weight | 3.5 kg / 7.7 lbs |
Net Weight (Without Stand) | 1.8 kg / 3.9 lbs |
Net Weight (Panel Mount) | 2.2 kg / 4.8 lbs |
Net Weight (Chassis) | 1.7 kg / 3.8 lbs |
Height Adjustment Range | - |
Tilt | 30° Up, 0° Down |
Swivel | 35° Right, 35° Left |
Pivot | - |
Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 1.0 - 6.8 mm |
Environmental Requirements | |
Operating Temperature |
Monitor: 0 - 50°C AC Adapter: 0 - 40°C |
Operating Humidity (R.H., non condensing) |
Monitor: 20 - 90% AC Adpter: 20 - 80% |
Degree of Protection | FDX1003-PBK: IP65 (front) |
Certifications & Standards (Please contact EIZO for the latest information.) |
FDX1003, FDX1003-F:
CB, CE, UKCA, CTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, CCC, RCM, EAC, RoHS, WEEE, China RoHS, J-Moss Green mark Guideline FDX1003-P, FDX1003-C: CE, UKCA, EAC, RoHS |
Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
Signal Cables | D-Sub mini 15 pin (1.8 m) |
Others |
FDX1003: AC adapter, Setup manual, CD-ROM (PDF user's manual), Clamper
FDX1003-F: AC adapter, setup manual, CD-ROM (PDF user's manual), VESA mounting screw (M4 x 12 mm) x 4, Clamper FDX1003-P: Setup manual, CD-ROM (PDF user's manual), VESA mounting screw (M4 x 10 mm) x 4, Clamper, Mounting bracket FDX1003-C: Setup manual, CD-ROM (PDF user's manual), VESA mounting screw (M4 x 10 mm) x 4, Clamper |
Warranty | 2 Years (24-hour use) |
Dimension Drawing |
