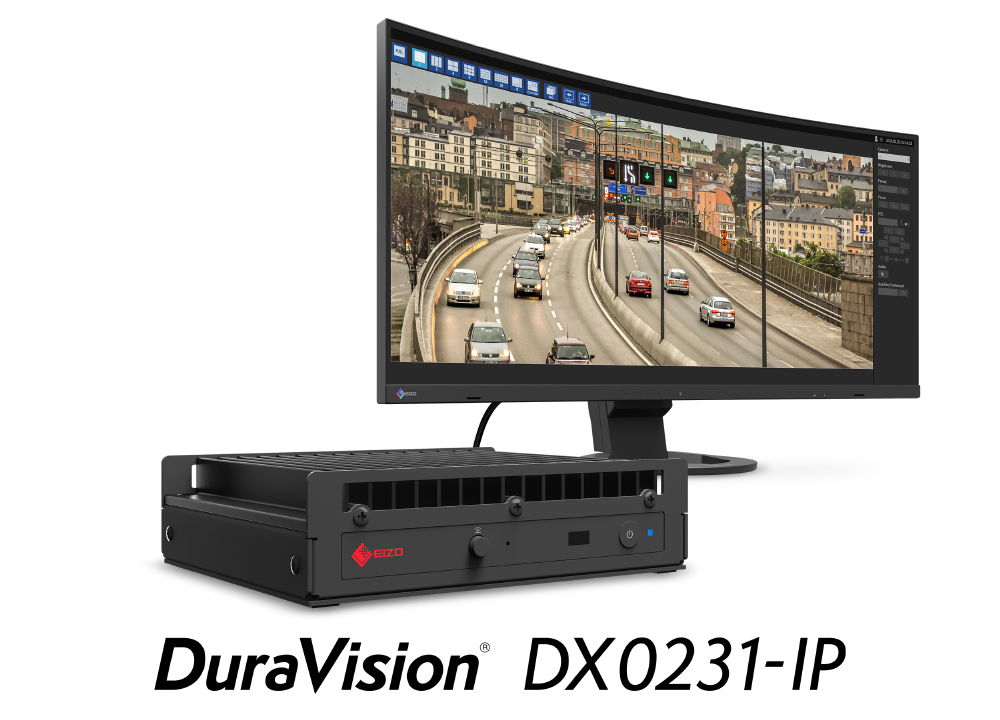

DX0231-IP is the successor to DX0212-IP, featuring an updated platform. Periodic software updates will introduce new features, which may be available as standard or unlocked via additional license(s).

See a product and license comparison below.

IP Solution License Guide［PDF］

The DuraVision IP Solution Technical Portal is a central hub for EIZO's IP decoding solutions gathering product specifications, compatibility information, and useful downloads.


DuraVision IP Solution Technical Portal


Live Video Streaming for Security & Surveillance

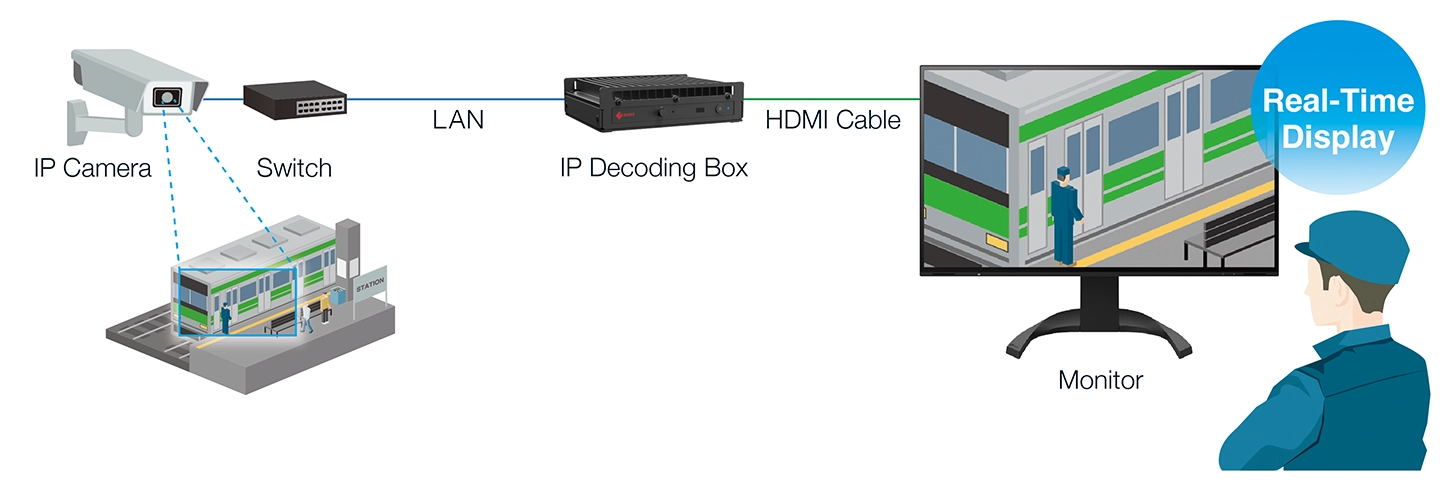

PC-Less Live Streaming Directly from IP Cameras

The DuraVision DX0231-IP connects directly to an IP camera or switch to stream video to a connected monitor without the need for a PC, software, or additional hardware. This greatly simplifies installation, saving time and labor costs, while reducing potential points of failure and addressing security concerns by minimizing the equipment needed to manage sensitive visual data. Additionally, the box can stream video without a decentralized recording system, such as edge recording or cloud archiving, making it ideal for environments that do not record or store images.

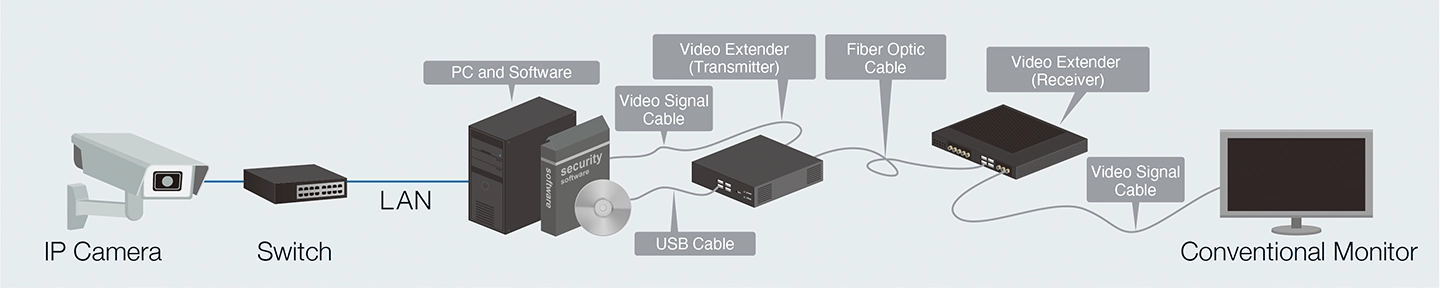

Conventional Installation

EIZO's IP Decoding Solution

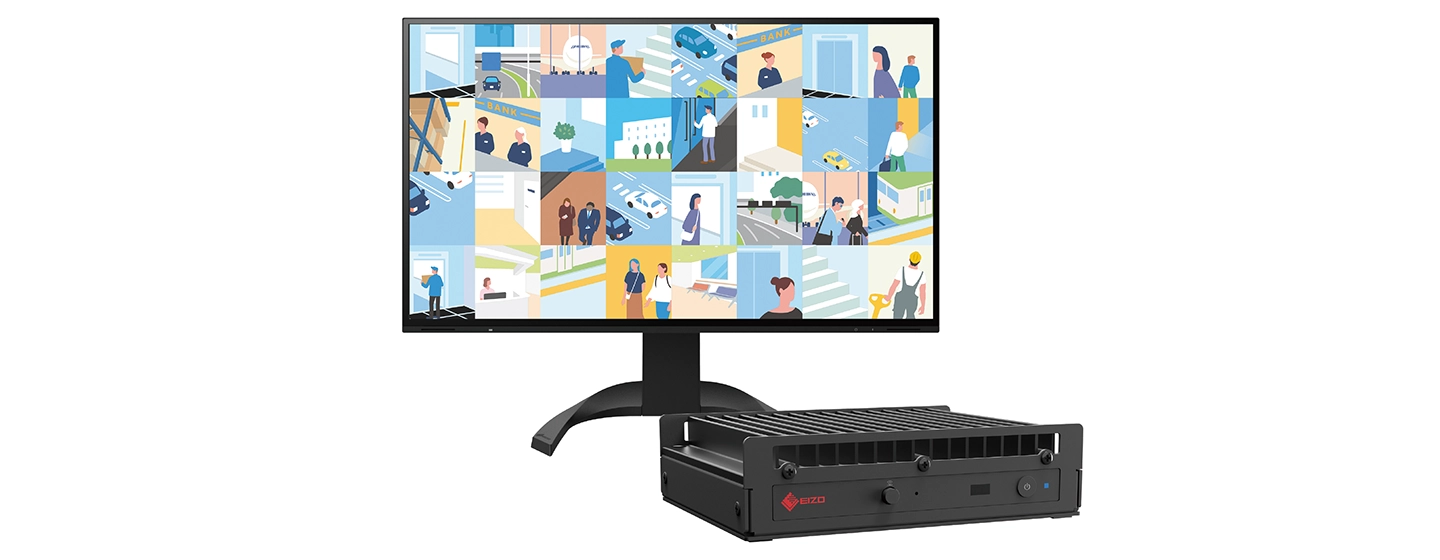

Display Up to 32 Cameras Simultaneously

The DX0231-IP can display up to 32 cameras simultaneously, providing comprehensive coverage and enhancing situational awareness. This centralized viewing flexibility allows operators to monitor multiple areas efficiently streamlining overall security operations.

IP Camera Support

Interoperable with Over 300 Cameras

DuraVision IP decoding solutions support ONVIF® Profile S, AXIS® VAPIX®, Panasonic, and i-PRO protocols, ensuring flexible installation and interoperability with a wide range of cameras. Additionally, a direct RTSP connection (Direct URI) is available for simplified access to live video feeds.

Register up to 48 Cameras

Register up to 48 IP cameras via the intuitive web UI. Cameras can be automatically discovered or manually registered, with individual settings easily managed centrally through the web interface.

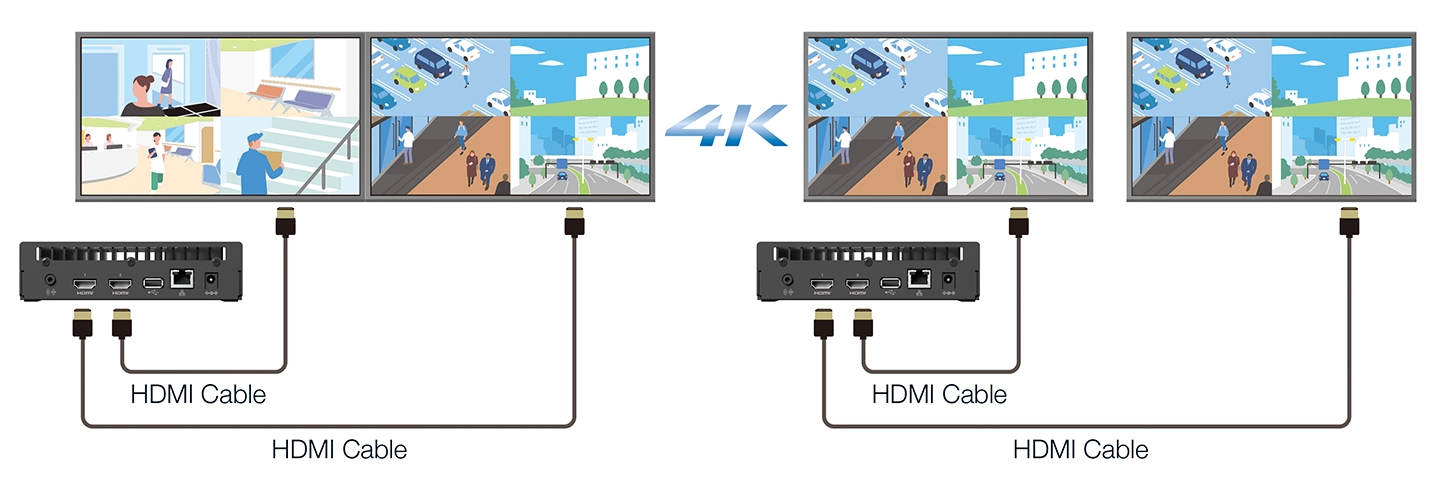

4K Output to Dual Monitors

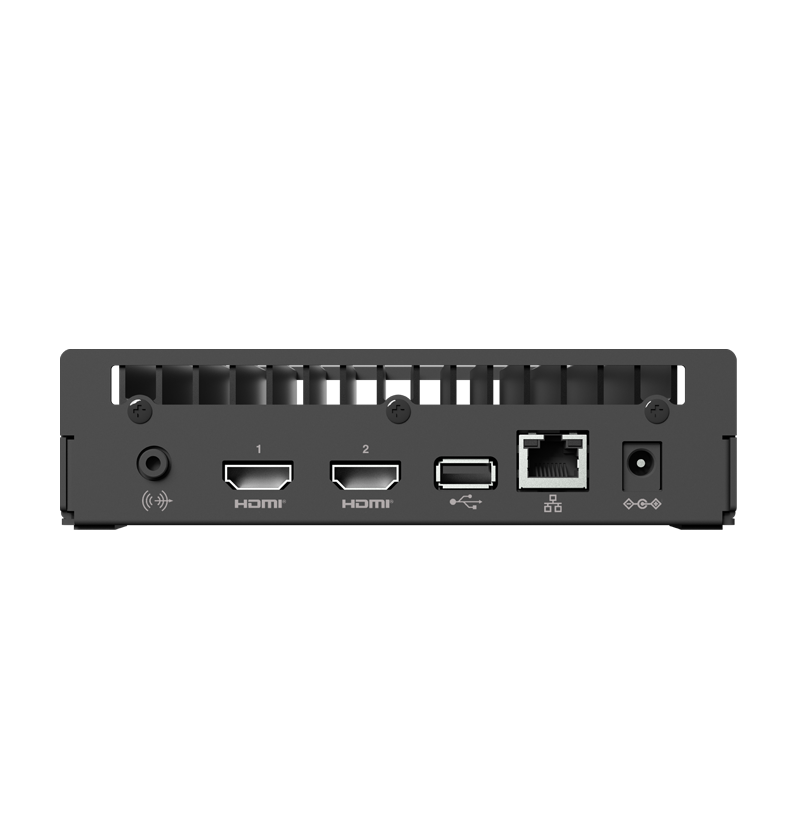

The IP decoding box is equipped with two HDMI^® outputs, each supporting highly detailed 4K UHD resolution (3840 x 2160). This enables operators to display multiple camera feeds on two screens, optimizing multi-monitor configurations. It flexibly supports a variety of screen sizes, making it highly adaptable for a diverse range of installation environments.

Dual Monitor Configuration

Extended Display	Mirroring

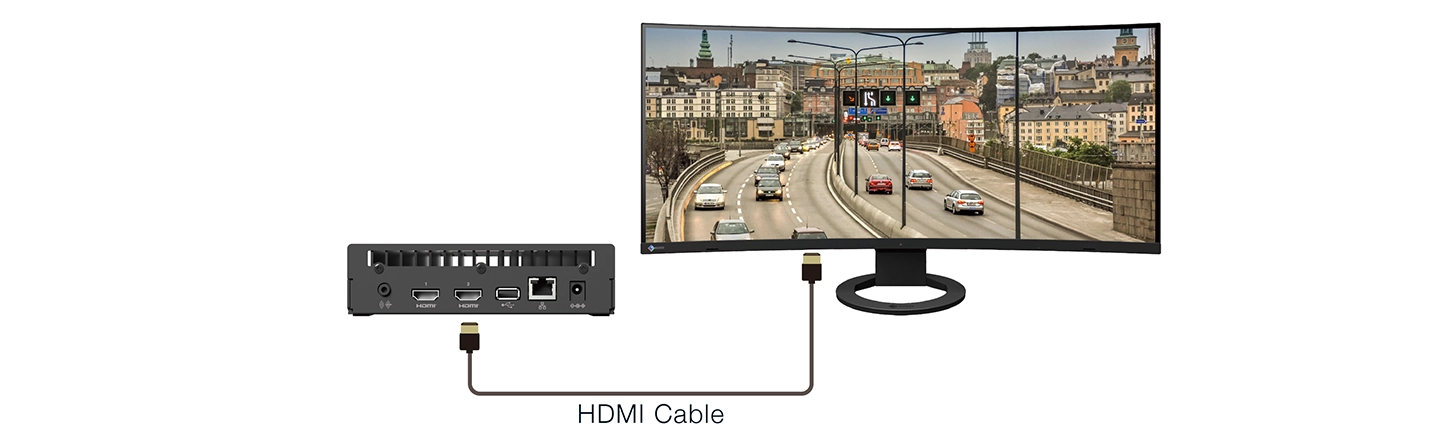

Ultrawide Monitor Configuration

The IP decoding box supports 3840 x 1600 and 3440 x 1440 ultrawide resolutions. This makes it ideal for displaying images from panoramic cameras.

Audio Output from Cameras

Audio from IP cameras can be output to a connected audio device, enhancing situational awareness.
Supported codecs: OPUS, G711, G726, AAC
Supported protocols: ONVIF, AXIS, Panasonic, i-PRO, DirectURI (RTSP)

A monitor with built-in speakers or a connected speaker is required.
Additional settings through the camera may be required.

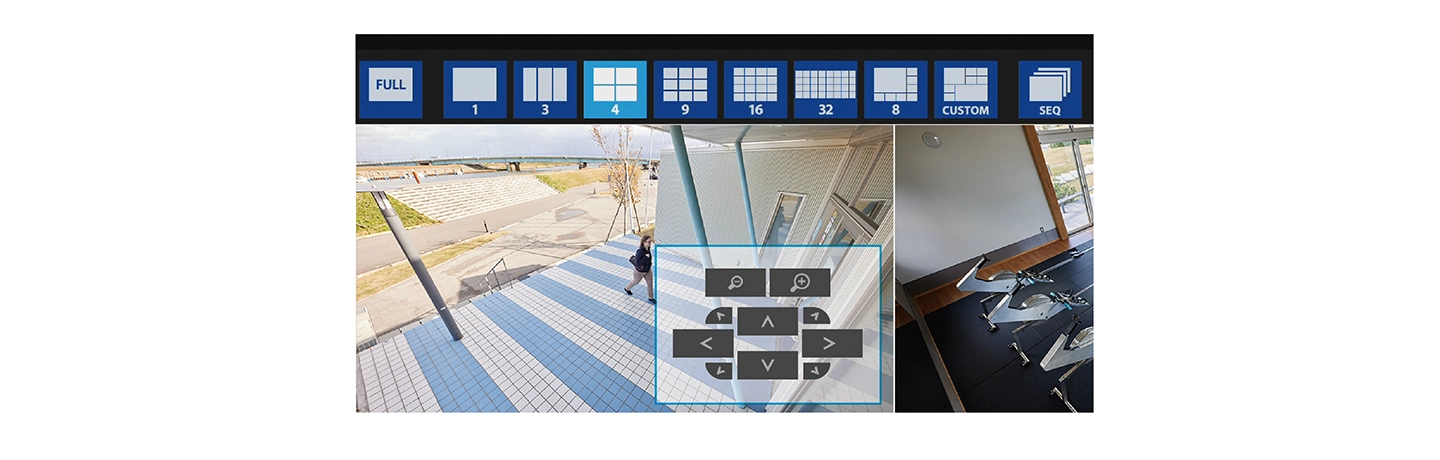

Camera PTZ Control

Operators can control individual camera PTZ (pan, tilt, zoom) settings from the DX0231-IP without needing to visit the installation site. Using the buttons displayed over the selected video stream, you can intuitively control movement in all directions, including diagonally.

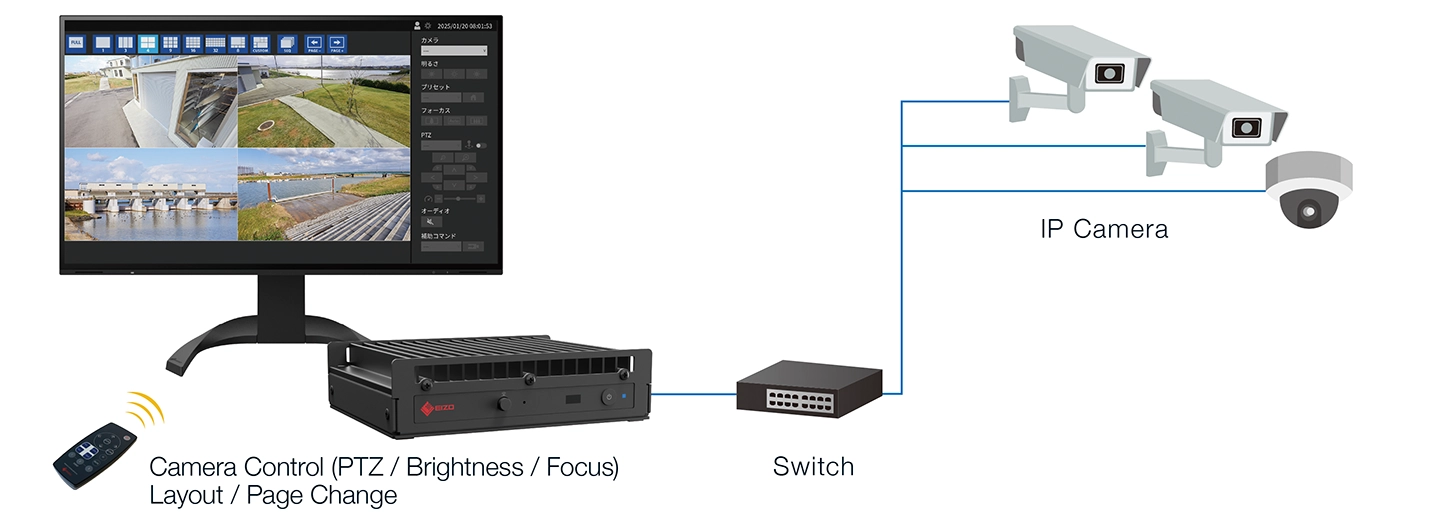

Intuitive Operation with Remote Control

Using a remote control, you can perform various operations such as control registered cameras, change screen layout, and power the device on or off, all without needing a PC.

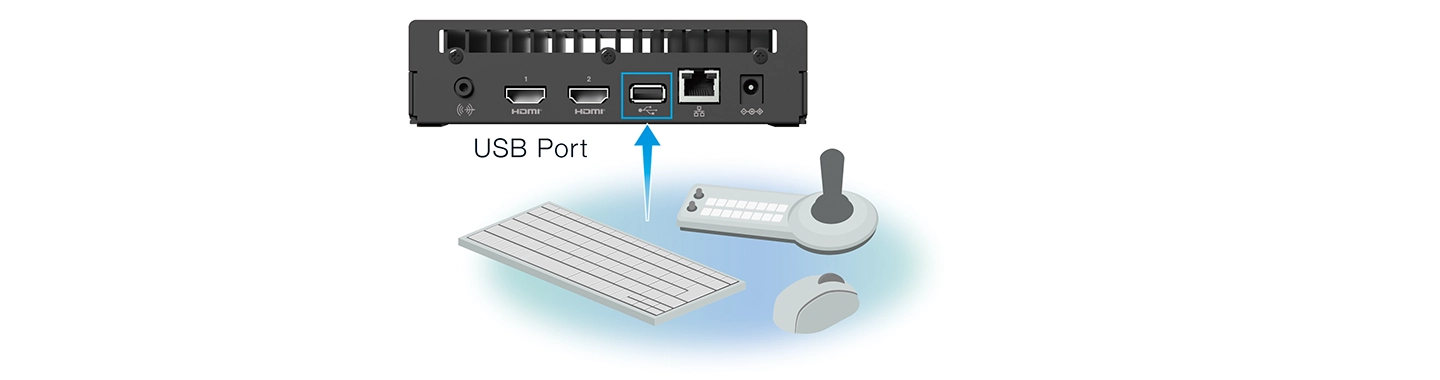

The IP decoding box is equipped with a USB port, enabling you to connect and operate it with a USB mouse, keyboard or joystick. To safeguard against potential information leakage, the USB port is designed to prevent the use of storage devices, such as USB memory sticks.

Comprehensive Video Management

Adjustable Screen Layout

Select from various default video stream layouts (1, 3, 4, 9, 16, 32, 8 (7+1) screens) or create your own with a custom layout. Custom layout settings allow you to merge or split windows, and view video in its original aspect ratio or stretched to fill the space.  Easily rearrange registered cameras in any layout with intuitive drag-and-drop functionality.

Choose from 7 default layouts.

Create a custom layout.

Sequential Screen Lock

When using the sequential image display setting, users can select an image to remain static, event through page changes.

Example of locked image (red frame)

Privacy Mask and Virtual Line

Users can assign static privacy masks to hide sensitive information on the live video stream without altering the source stream. Virtual lines and shapes can be applied to the screen to track barriers and designated zones. Up to 10 objects can be applied and do not alter the source stream.

Settings can also be carried out through the API

Privacy Mask Example: Hide private information during ATM surveillance	Virtual Line Example: Track road boundaries

Virtual PTZ

The virtual PTZ function enables operators to digitally zoom in on a specific area of the displayed image for closer inspection. Once enlarged, the operator can pan the image up, down, left, or right in real time. This is useful for viewing video from cameras that lack physical PTZ capabilities.

Live Image Menu Customization

The Icon Arranger function allows you to customize the live image screen menu by freely removing or reordering the icons. Additionally, you can create and add up to seven user-defined presets, specifying the display layout and camera positions for each. Presets can also be renamed as desired.

Requires LiveView License, available separately.

Freely arrange icons in settings (web browser).	Changes are reflected on live image screen.

SRT (Secure Reliable Transport)

The IP decoding box supports SRT, an open source video transport protocol that enables the delivery of high-quality and secure, low-latency video across the public internet. This makes it ideal for environments with latency and connection challenges, such as onboard ships or remote locations.

Requires Decoding License, available separately.


Seamless Integration with Network Devices

Custom Event Response with Alert-to-Action

The web API supports custom integration with local security systems and devices, enabling communication and response to network alerts. When an event occurs, EIZO's IP decoding solution responds with preassigned actions, such as layout adjustment, message display, audio activation, camera adjustment, masking, and more. Additionally, a scheduler function allows you to set actions to be executed at specific days and times.

Learn more about system integration here

VMS Integration

EIZO collaborates with security & surveillance leaders to ensure technical compatibility and streamlined functionality with various video management systems/software (VMS). By fully integrating co-developed plugins into these VMS frameworks, users can easily set up, manage, and control EIZO's IP decoding solutions from a centralized platform.

Integration with Milestone XProtect^® and HEXAGON Qognify require VMS License, available separately.

Learn more about VMS integration


Security and Reliability

SNMP (Simple Network Management Protocol)

The IP decoding box supports SNMP v1 and v2c, enabling communication with network management systems to share information about its status and performance.

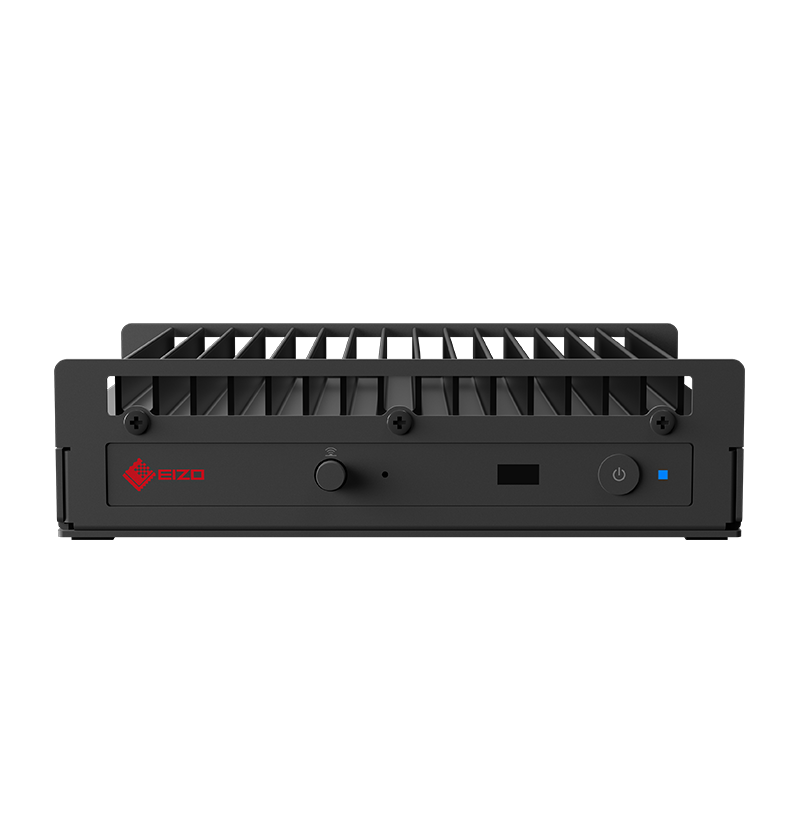

Fanless Solution with Low Heat Output

The DuraVision DX0231-IP provides noiseless, fanless operation while maintaining low heat output for long-term reliability. The top of the box is designed so that heat escapes efficiently, keeping it cool even during long periods of operation.

24-Hour Use, 2-Year Warranty

The product is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.

Flexible Installation

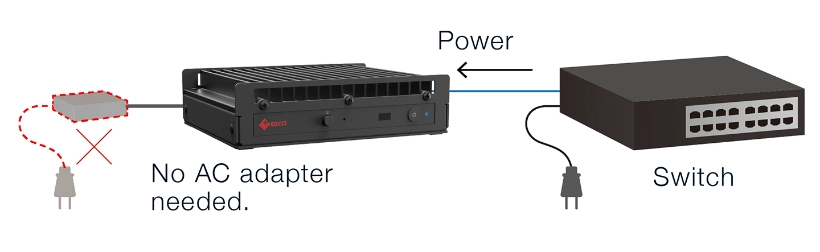

Power Delivery without AC Adapter

The DuraVision DX0231-IP is equipped with a PoE+ hub so it stays powered without needing an AC adapter and cable, keeping the installation area tidy. An optional DVAC-02 AC adapter is available for environments where PoE+ is not supported.

AC adapter and power cord are not included with DX0231-IP.

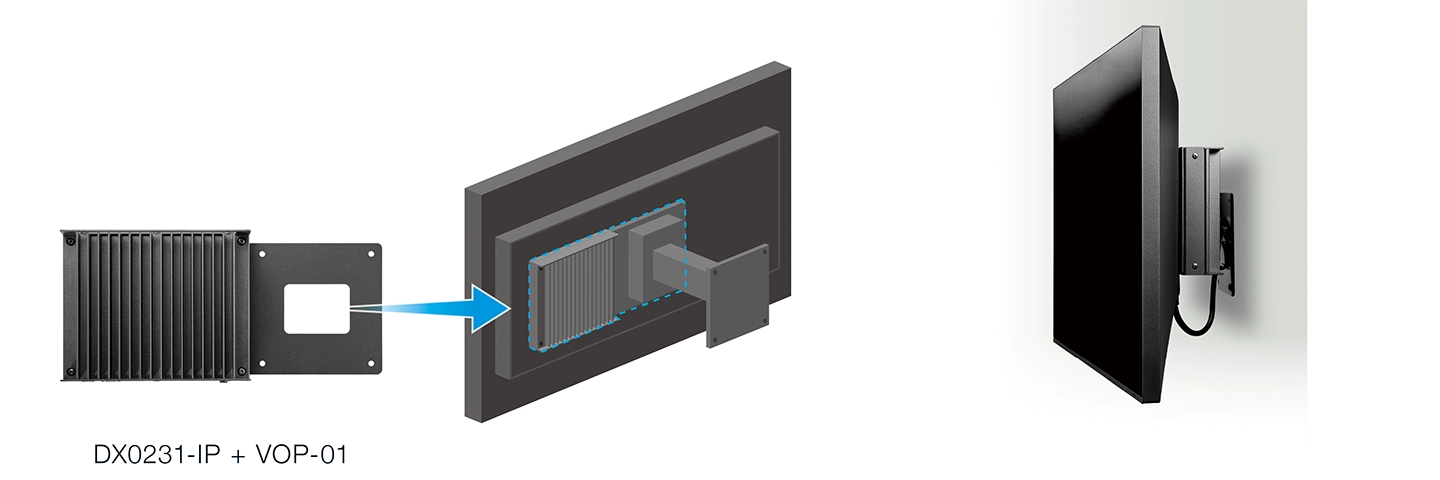

Minimal Footprint in Mounted Installations

The IP decoding box can be easily mounted to any VESA-supported monitor using the VOP-01 mounting plate. Its slim, compact design fits perfectly behind wall- or ceiling-mounted monitors, minimizing space usage and reducing cable clutter.

Some monitors require the VESAMP100 mounting plate in order to attach the VOP-01.

Clean Workspace for Desktop Solutions

The IP decoding box can be directly attached to many EIZO desktop monitors using EIZO's monitor stand bracket. This setup creates a cleaner workspace for desktop solutions. The attachment maintains the monitor's balance, ensuring it stays securely in place on your desk.

Sustainable Future

Eco-Conscious Packaging

EIZO is committed to reducing its environmental impact by transitioning away from plastic and other environmentally unfriendly materials in product packaging.

Conventional Packaging Material	New Packaging Material

Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).

Industry, Innovation, and Infrastructure DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services. Learn more
Environmentally Conscious Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system. Learn more

• Learn about the EIZO Group's sustainability initiatives, strategies, and more in the latest Integrated Report.

1. ¹²  Power can only be received from 2-Event Classification-enabled network switches.
2. ¹³  MJPEG is only available with the ONVIF Profile S protocol.
3. ¹⁷  Decoding license is required.
