FlexScan EV2785
27″ (68 cm) LCD Monitor
Redefining the workspace.
The generous 27-inch screen holds a 4K resolution giving images great sharpness and clarity. With its sleek, frameless design and USB Type-C connectivity, the EV2785 helps you make the most of your workspace.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories
  • Awards & Reviews


One Cable Connection

Single Cable Connection with USB Type-C

The FlexScan EV2785 comes with a USB Type-C port. With a single USB Type-C cable you can transmit both video and audio signals, transfer data, and supply up to 60W of power to attached devices such as smartphones and laptops. What’s more, it has an internal power unit so no external AC adapter is required.

One Cable Connection

USBType-C_before.jpg USBType-C_after.jpg

60 W Power Supply  for Use with High-End Notebooks

The USB Type-C terminal supplies up to 60 watts of power making it ideal for use with XPS, MacBook Pro, and other high-end notebooks.

Compatibility between FlexScan EV2785 and devices equipped with USB Type-C

Reference Articles

Could your poor work efficiency be because of your notebook PC? Improve efficiency by working with a USB Type-C compatible Monitor.

Improve Work Efficiency by Combining an External Monitor with your Notebook PC

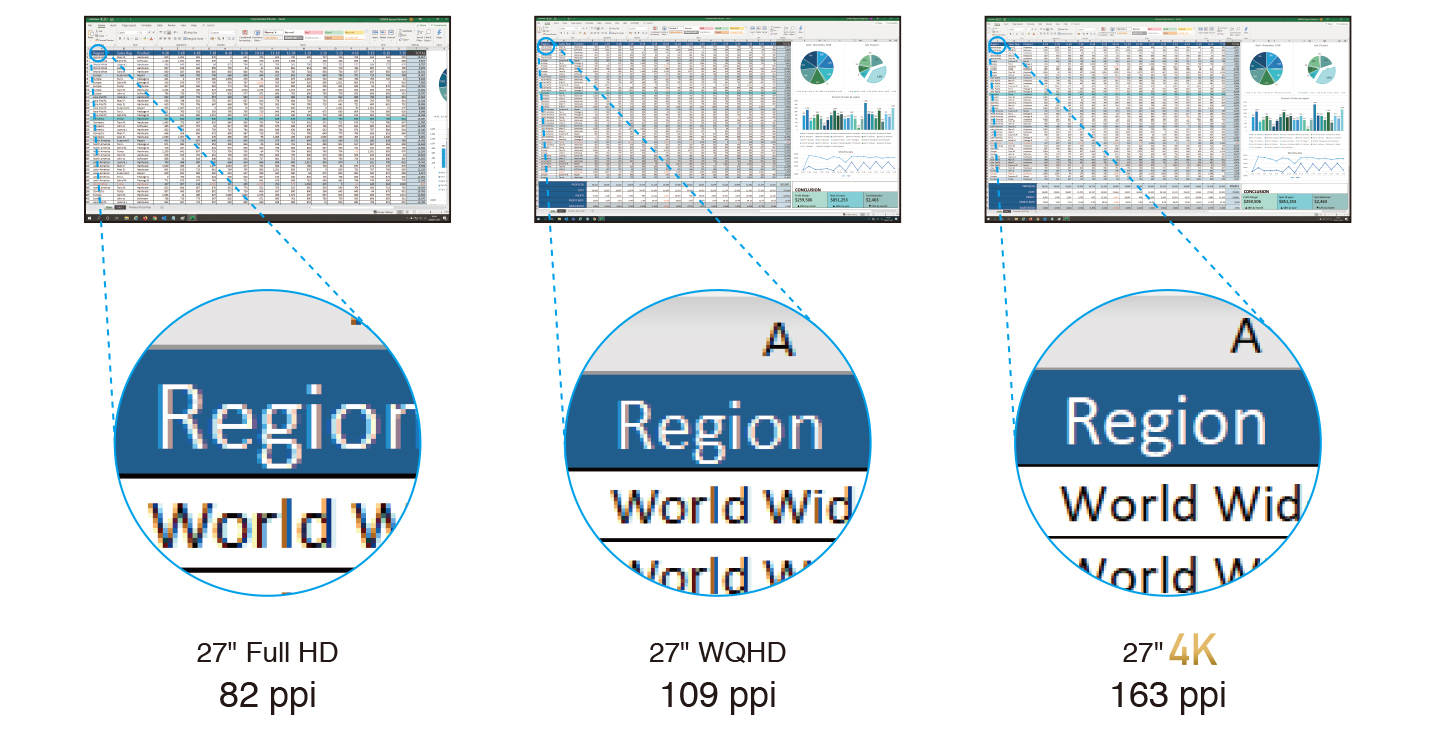

4K Resolution – Text and Images in Crisp Detail

The EV2785 features a 27-inch screen with a 4K resolution for a tight pixel pitch of 163 ppi. Furthermore an LED-backlit IPS (in-plane-switching) LCD panel is used which produces deep and vivid colors.

4k resolution



Why Is My Monitor Blurry Even Though It's HiDPI? Learn Everything You Need to Know About HiDPI.



Function and Beauty

Frameless Design

With a bezel width of only 1 mm on the top and sides, the EV2785 is virtually frameless. Even with the 6.4 mm black borders along the perimeter of the LCD, there is only 14.8 mm between the display area of each screen in a multi-monitor configuration, which makes for almost seamless viewing



Beautiful from Front to Back




Say Goodbye to Tired Eyes

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.


Reduce Blue Light by 80%

In the visible light spectrum, blue light has wavelengths adjacent to ultraviolet light. Compared to the factory preset setting of 6,500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents. When used in conjunction with Auto EcoView dimming function, blue light can be reduced by as much as 80%.



1% – 100% Brightness Range

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.


Versatile Stand

The stand features height adjustment, tilt, and swivel, while saving space and remaining stylish. Quickly and smoothly adjust your monitor to the perfect position.


Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen – and it also makes the EV2785 perfect for multi-monitor configurations.


Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV2785 utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.



Front-Facing Speakers

The EV2785 has speakers incorporated into the minimalist front bezel, ensuring that sound is focused on the user and not on people behind the monitor.






Intelligent Software to Work Better


EIZO’s Screen InStyle is a free software that allows you to easily manage monitor settings such as power, color, brightness and gamma by using your mouse instead of monitor control buttons.

Auto Color Mode

Use the Auto Color Mode to assign a color mode to turn on when using specific applications such as those for writing documents, photo viewing, creating illustrations or watching movies. When an application is opened the screen will automatically switch to the assigned color mode, making manual switching unnecessary.


Hotkey Assignment

When you have two PCs connected to your monitor, switch between them with just your keyboard. Even when using picture by picture, signals can be switched quickly and easily.

Sleep Better with Automatic Blue Light Control

The Circadian Dimming function automatically changes the color temperature of your monitor as the day progresses. Maintain your body's natural circadian rhythm by setting the monitor to gradually reduce blue light during the evening, helping you sleep easier

Multi-Monitor Convenience

When using multiple monitors, save time by synchronizing all the monitors with each other. If you change the color mode, brightness or color temperature of one monitor, the rest will automatically change to the same. In addition, when one monitor’s power is turned off, all the other monitors will also turn off.

Learn more about Screen InStyle


Effectively Monitor Asset Management

With Screen InStyle Server receive information such as the model name and serial number of any monitor connected to your network. Additionally, see information from the computer that each monitor is connected to, such as the OS, IP address and computer name.




Manage Multiple Monitors from One Location

Control multiple monitors' settings such as color mode, brightness, and eco functions from a remote location. Furthermore, prevent unintended setting changes by locking the operation switch.




Learn more about Screen InStyle Server

Additional Convenience

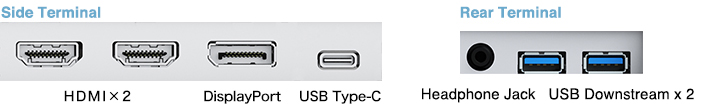

USB Type-C, DisplayPort, HDMI x 2

One USB Type-C terminal, one DisplayPort input and two HDMI inputs compatible with 4K / 60p are installed. The USB Type-C terminal is convenient for connecting a notebook computer because it is easy to attach and detach the cable and can also supply power. All input terminals support 4K / 60p, and animation is displayed smoothly.


Compatibility between FlexScan EV2785 and Devices Equipped with HDMI

Picture by Picture

The FlexScan EV2785 lets you view data from two input sources at once such as a Windows and a Mac computer with no distracting bezel in between.


Free Up Your Workspace with a Stand Bracket

The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely.


5-Year Warranty

5-year.jpgA manufacturer’s 5-year warranty covers all components including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.



Zero Bright Pixels

Zero bright policyEIZO guarantees this product will be free from bright sub-pixels for six months from purchase date.

See our Bright Pixel Policy for details.



Compliance with International Labels


Model Variations With FlexStand, Without Stand
Cabinet Color White, Black
Panel
Type IPS
Backlight LED
Size 27" / 68.5 cm
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.7 x 335.7 mm
Pixel Pitch 0.155 x 0.155 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°/ 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1300:1
Response Time (typical) 5 ms (Gray-to-gray)
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (HDCP 2.2/1.4) x2
Digital Scanning Frequency (H / V) USB Type-C: 31 - 134 kHz / 29 - 31 Hz and 59 - 61 Hz
DisplayPort: 31 - 134 kHz / 29 - 31 Hz and 59 - 61 Hz
HDMI: 31 - 135 kHz / 29 - 31 Hz and 49 - 61 Hz
USB
Upstream USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 60 W max.)
Downstream USB 3.1 Gen 1: Type-A x2
(Battery Charging 10.5 W max. x1)
Audio
Speakers 1.0 W +1.0 W
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption 163 W
Typical Power Consumption 31 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes Color mode (User1, User2, sRGB, Paper, Movie, DICOM)
Auto EcoView Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 611.4 x 367.3 - 545.2 x 230 mm
Dimensions (Portrait, W x H x D) 356.3 x 622.4 - 675.7 x 230 mm
Dimensions (Without Stand, W x H x D) 611.4 x 356.3 x 50 mm
Net Weight 8.2 kg
Net Weight (Without Stand) 4.9 kg
Height Adjustment Range 177.9 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) TCO Certified Displays 7, EPEAT Gold (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, EAC
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (2 m), DisplayPort (2 m), HDMI (2 m)
Others AC power cord (2 m), cable cover, Screw for VESA mount x4, setup guide
Warranty Five Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
